Audio Digital Signal Processing (DSP) Module: Notes

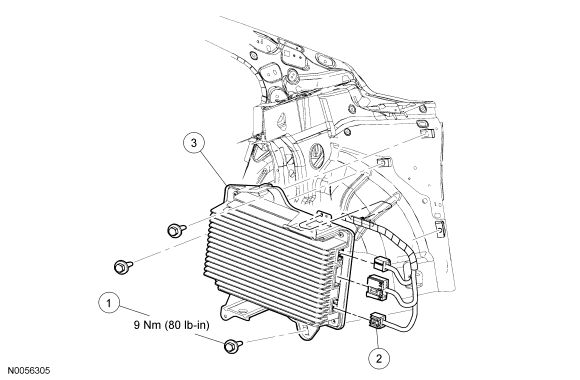

Fig 1: Exploded View Of Audio Amplifier With Torque Specification - THX(R)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W505423-S	Audio Digital Signal Processing (DSP) module bolts (3 required)
2	-	Audio DSP module electrical connectors (part of 14A005)
3	18B849	Audio DSP module
