Disassembly And Assembly Of Subassemblies: Differential: Disassembly

Inspect the differential for wear or damage.
- Inspect for damaged or worn gears.
- Inspect for worn or damaged differential bearings.
- Install new components as necessary.
Remove the differential side gears and thrust washers.
- Rotate the differential side gears to remove.

Fig 1: Locating Differential Side Gears

Courtesy of FORD MOTOR CO.

Using the special tools, remove the differential bearing.
- Always install new bearings and cups as a set. Do not install one without the other.

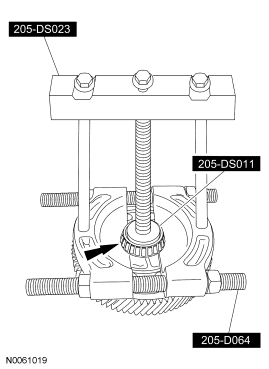

Fig 2: Locating Special Tools (205-D064, 205-DS011, 205-DS023) And Differential Bearing

Courtesy of FORD MOTOR CO.

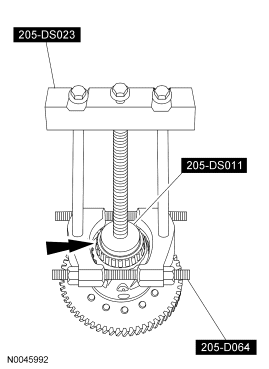

Fig 3: Locating Special Tools (205-D064, 205-DS011, 205-DS023) And Speedometer Drive Gear

Courtesy of FORD MOTOR CO.

Rotate the differential assembly with the speedometer drive gear side facing downward. Remove the other differential bearing.
- Always install new bearings and cups as a set. Do not install one without the other.

Fig 4: Locating Special Tools (205-D064, 205-DS011, 205-DS023) And Differential Bearing

Courtesy of FORD MOTOR CO.

Fig 5: Locating Differential Pinion Shaft Lock Pin

Courtesy of FORD MOTOR CO.

Remove the differential pinion shaft, the differential pinon gears and the thrust washers.
