Disassembly And Assembly Of Subassemblies: Differential: Notes
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Bearing Puller | 205-D064 (D84L-1123-A) or equivalent | |
| Differential Bearing Cup Replacer | 308-162 (T88C-77000-EH) | |
| Push Puller Set | 205-DS023 (D80L-927-A) or equivalent | |
| Step Plate Adapter Set | 205-DS011 (D80L-630-A) or equivalent |

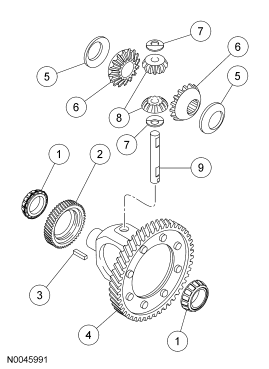

| Item | Part Number | Description |
|---|---|---|
| 1 | 4221 | Differential bearings |
| 2 | 17285 | Speedometer drive gear |
| 3 | 4241 | Differential pinion shaft lock pin |
| 4 | 4026 | Differential |
| 5 | 4228 | Differential side gear thrust washers |
| 6 | 4236 | Differential side gears |
| 7 | 4230 | Differential pinion gear thrust washers |
| 8 | 4215 | Differential pinion gears |
| 9 | 4211 | Differential pinion shaft |
