Output Shaft: Notes
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Axle Bearing/Seal Plate | 205-090 (T75L-1165-B) | |
| Bearing Cone Replacer | 307-181 (T87C-77000-D) | |
| Bearing Cone Replacer | 308-155 (T88C-7025-DH) | |
| Bearing Puller | 205-D064 (D84L-1123-A) or equivalent | |
| Dial Indicator Gauge with Holding Fixture | 100-002 (TOOL-4201-A) |

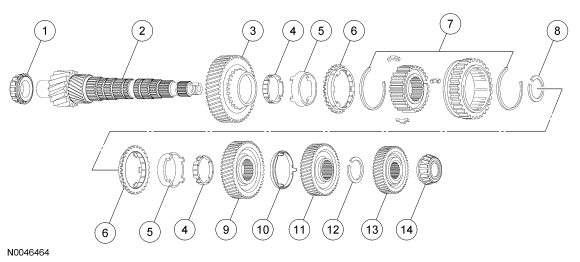

| Item | Part Number | Description |
|---|---|---|
| 1 | 7F431 | Output shaft bearing |
| 2 | 7061 | Output shaft |
| 3 | 7100 | 1st gear |
| 4 | - | Synchronizer inner cones |
| 5 | - | Synchronizer outer cones |
| 6 | 7107 | Synchronizer blocking rings |
| 7 | - | 1st/2nd gear synchronizer assembly |
| 8 | 7064 | Snap ring |
| 9 | 7102 | 2nd gear |
| 10 | - | Friction damper cone |
| 11 | - | Secondary 3rd gear |
| 12 | 7064 | Snap ring |
| 13 | - | Secondary 4th gear |
| 14 | 7025 | Bearing |
