Steering Column: Notes

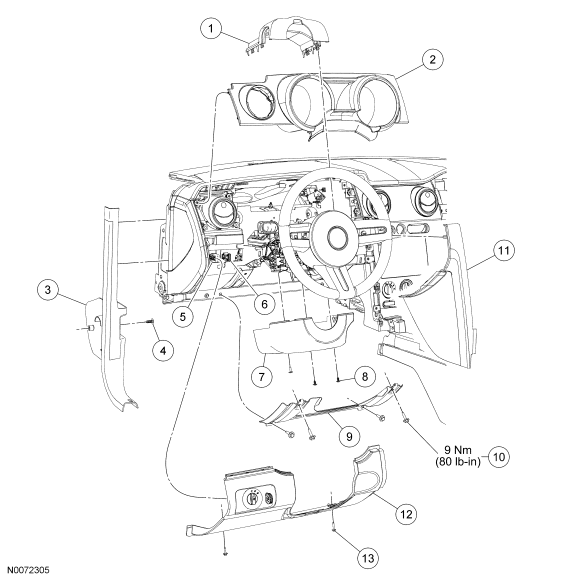

| Item | Part Number | Description |
|---|---|---|
| 1 | 3530A | Upper steering column shroud |
| 2 | 044D70 | Instrument cluster finish panel |
| 3 | A30A64 | LH A-pillar lower trim panel |
| 4 | W505156 | LH A-pillar lower trim panel screw |
| 5 | - | Headlamp switch electrical connector (part of 14401) |
| 6 | - | Courtesy lamp switch electrical connector (part of 14401) |
| 7 | 3530B | Lower steering column shroud |
| 8 | W707281 | Lower steering column shroud screw (2 required) |
| 9 | 04502 | Steering column opening cover reinforcement |
| 10 | W505424 | Steering column opening cover reinforcement screw (4 required) |
| 11 | 04608 | Left center stack wing |
| 12 | 04459 | Steering column opening cover |
| 13 | W505156 | Steering column opening cover screw (2 required) |

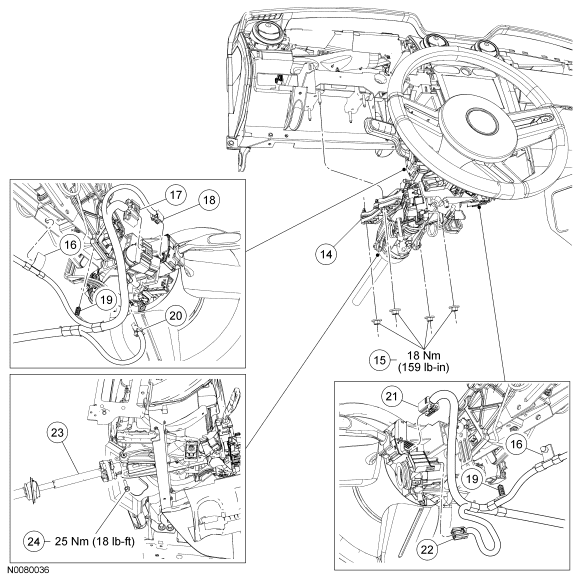

| Item | Part Number | Description |
|---|---|---|
| 14 | 3C529 | Steering column |
| 15 | W705047 | Steering column nuts (4 required) |
| 16 | - | Electrical harness retainer (part of 14401) |
| 17 | - | Ignition switch electrical connector (part of 14401) |
| 18 | - | Multifunction switch electrical connector (turn signal/hazard flasher) (part of 14401) |
| 19 | - | Electrical harness retainer (part of 14401) |
| 20 | - | Clockspring electrical connector (part of 14401) |
| 21 | - | Multifunction switch electrical connector (windshield wiper/washer) (part of 14401) |
| 22 | - | Passive Anti-Theft System (PATS) electrical connector (part of 14401) |
| 23 | 3E751 | Steering column shaft |
| 24 | W704980 | Steering column shaft-to-steering column bolt |
