Traction Control Switch: Notes

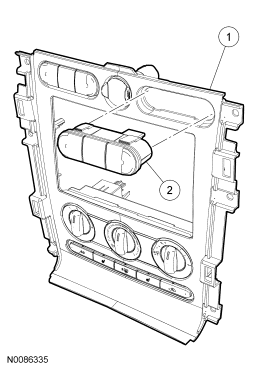

Fig 1: Exploded View Of Traction Control Switch
GF0046429Courtesy of FORD MOTOR CO.
Item Part Number Description
1 6304302 Instrument panel center finish panel
2 13D730 Traction control switch
