Primary Fuel Pump Driver Module Connector

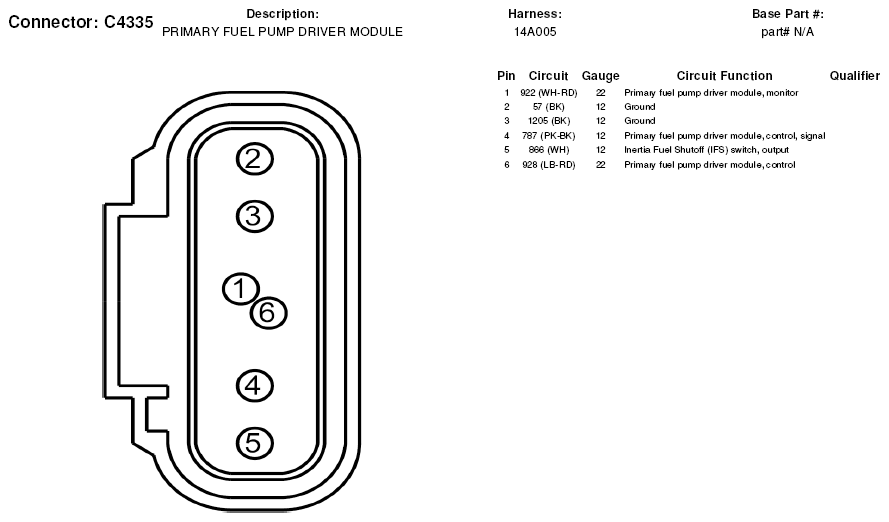

Fig 1: Primary Fuel Pump Driver Module Connector End View (C4335)
