Symptom Chart - Climate Control Systems

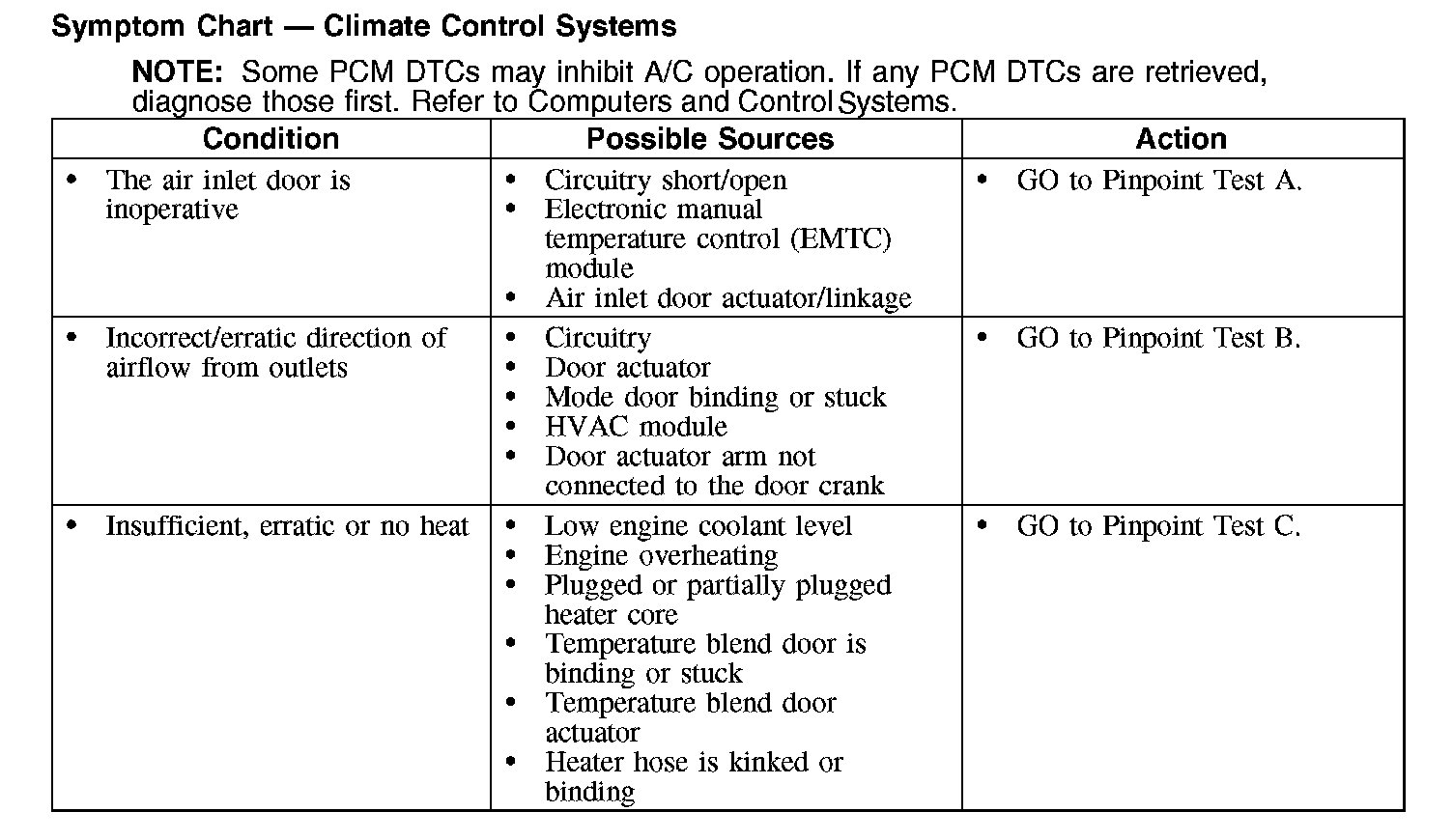

Symptom Chart - Climate Control Systems (Part 1):

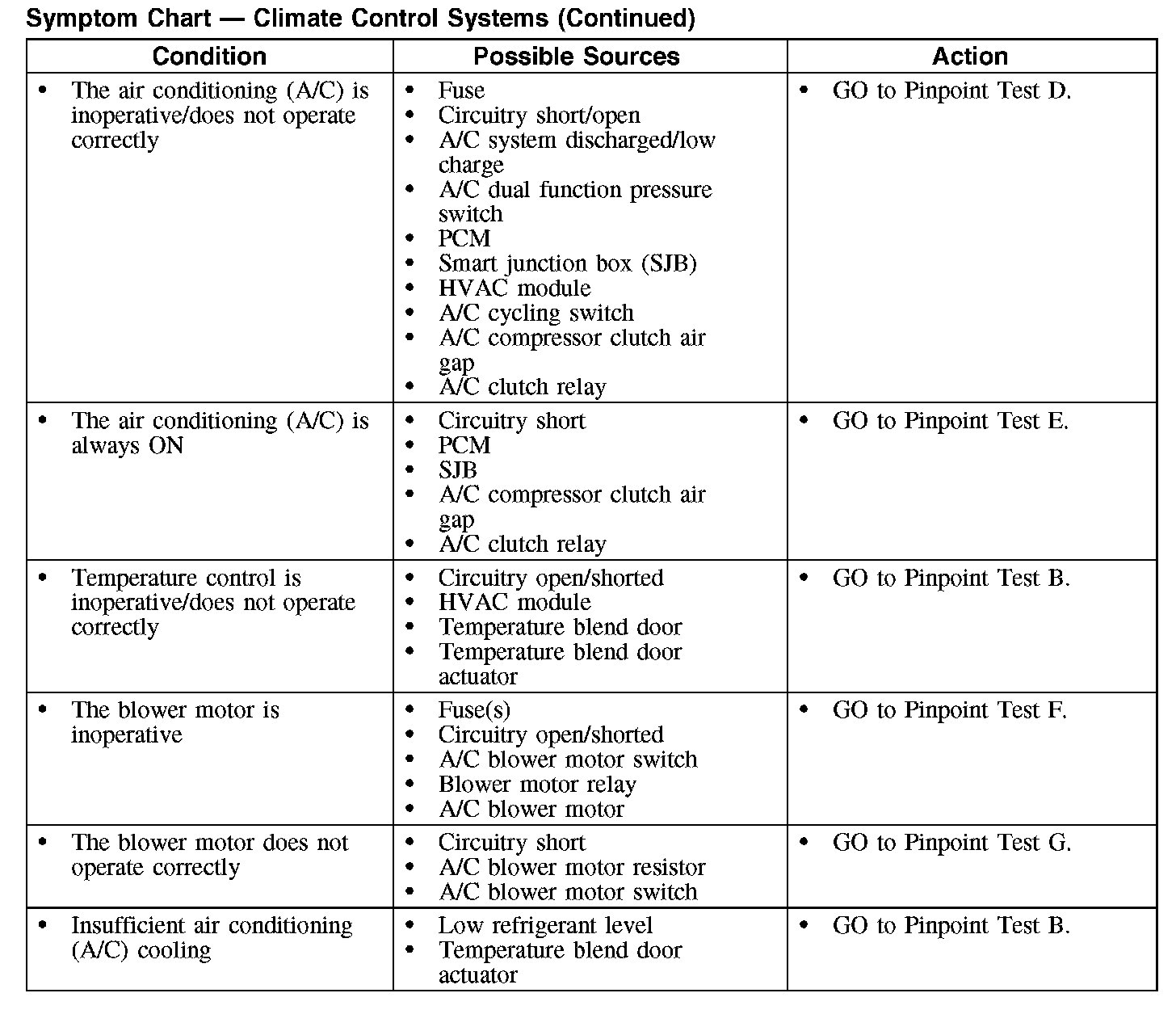

Symptom Chart - Climate Control Systems (Part 2):
