Power Window Switch: Service and Repair

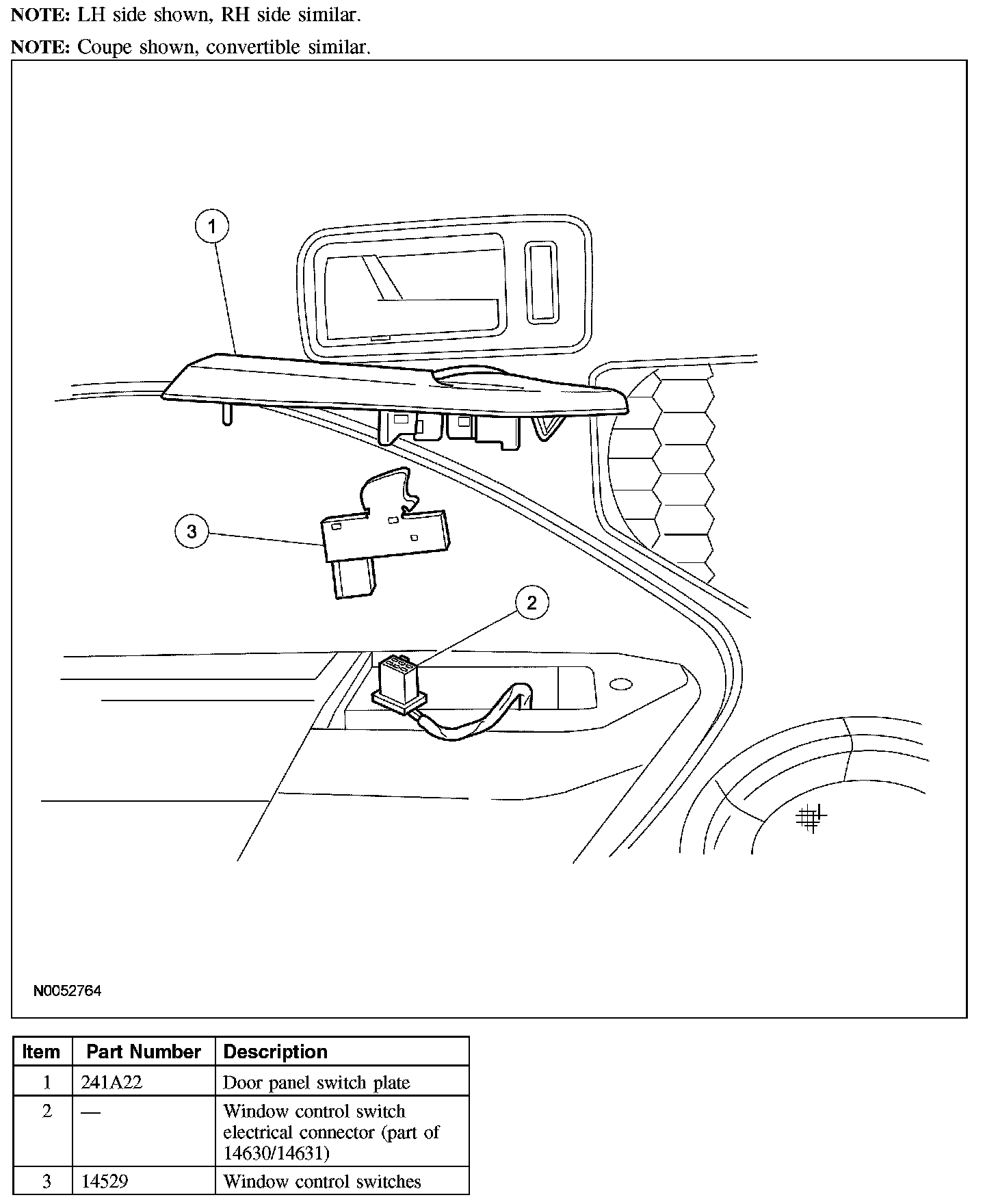

WINDOW CONTROL SWITCH







Removal and Installation

1. CAUTION: Use a shop towel or similar material between the tool and the door trim panel or damage to the door trim panel may occur.

Release the clip and remove the door panel switch plate.
- Disconnect the electrical connector.

2. Release the tabs and remove the window control switch.
3. To install, reverse the removal procedure.
