Quarter Window Regulator: Service and Repair

WINDOW REGULATOR MOTOR - REAR QUARTER







Removal and Installation

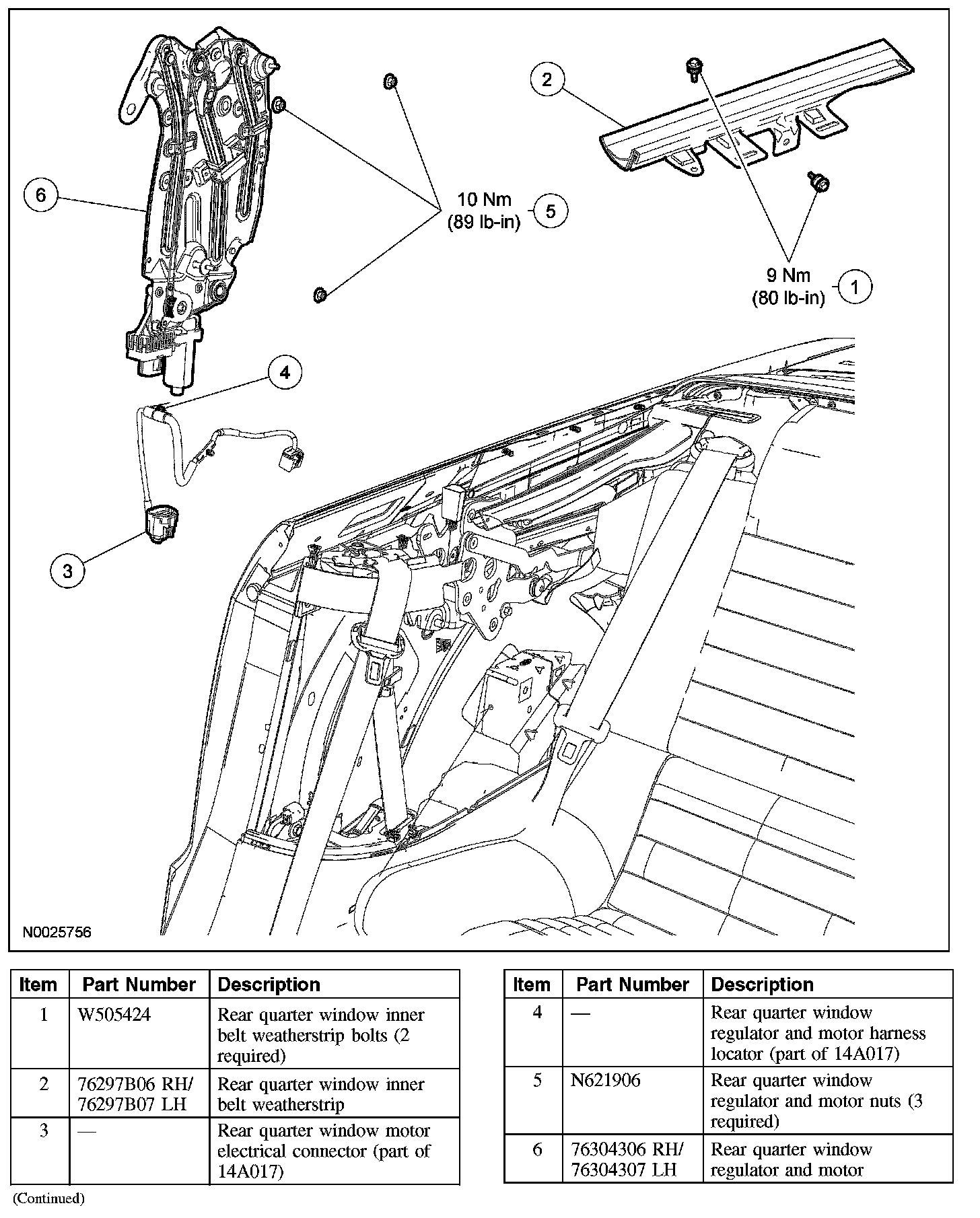

1. Remove the rear quarter window glass.
2. Remove the 2 bolts and the rear quarter window inner belt weatherstrip.
- To install, tighten to 9 Nm (80 lb-in).

3. Disconnect the electrical connector from the rear quarter window motor.
4. Remove the harness locator from the rear quarter window regulator and motor assembly.

5. NOTE: Make certain not to disturb the jack screws when removing the rear quarter window regulator and motor assembly nuts.

Remove the 3 nuts and the rear quarter window regulator and motor assembly.
- To install, tighten to 10 Nm (89 lb-in).

6. To install, reverse the removal procedure.
