Scan Tool Testing and Procedures
Diagnostic Parameters Identification (PID) Chart

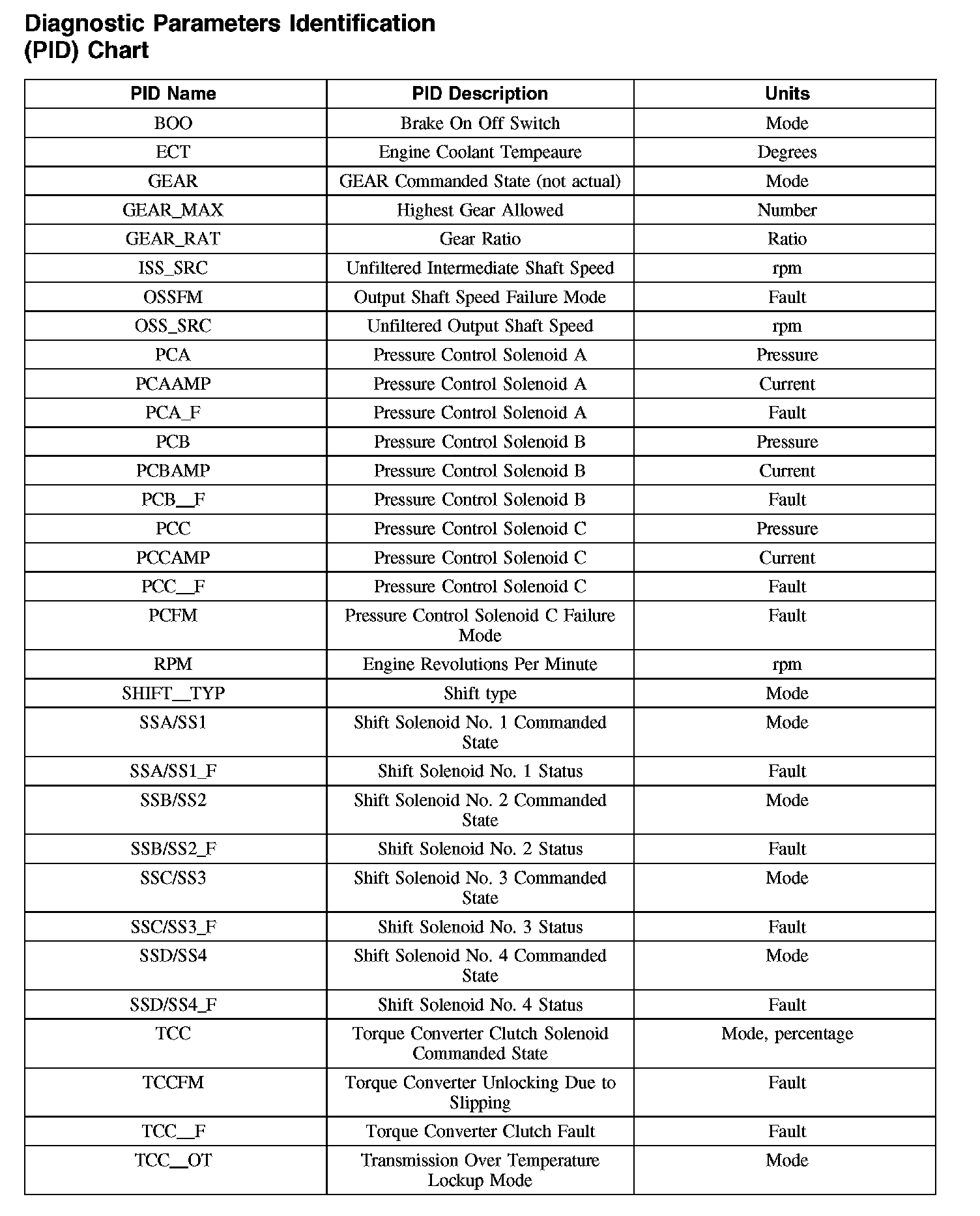

Diagnostic Parameters Identification (PID) Chart (Part 1):

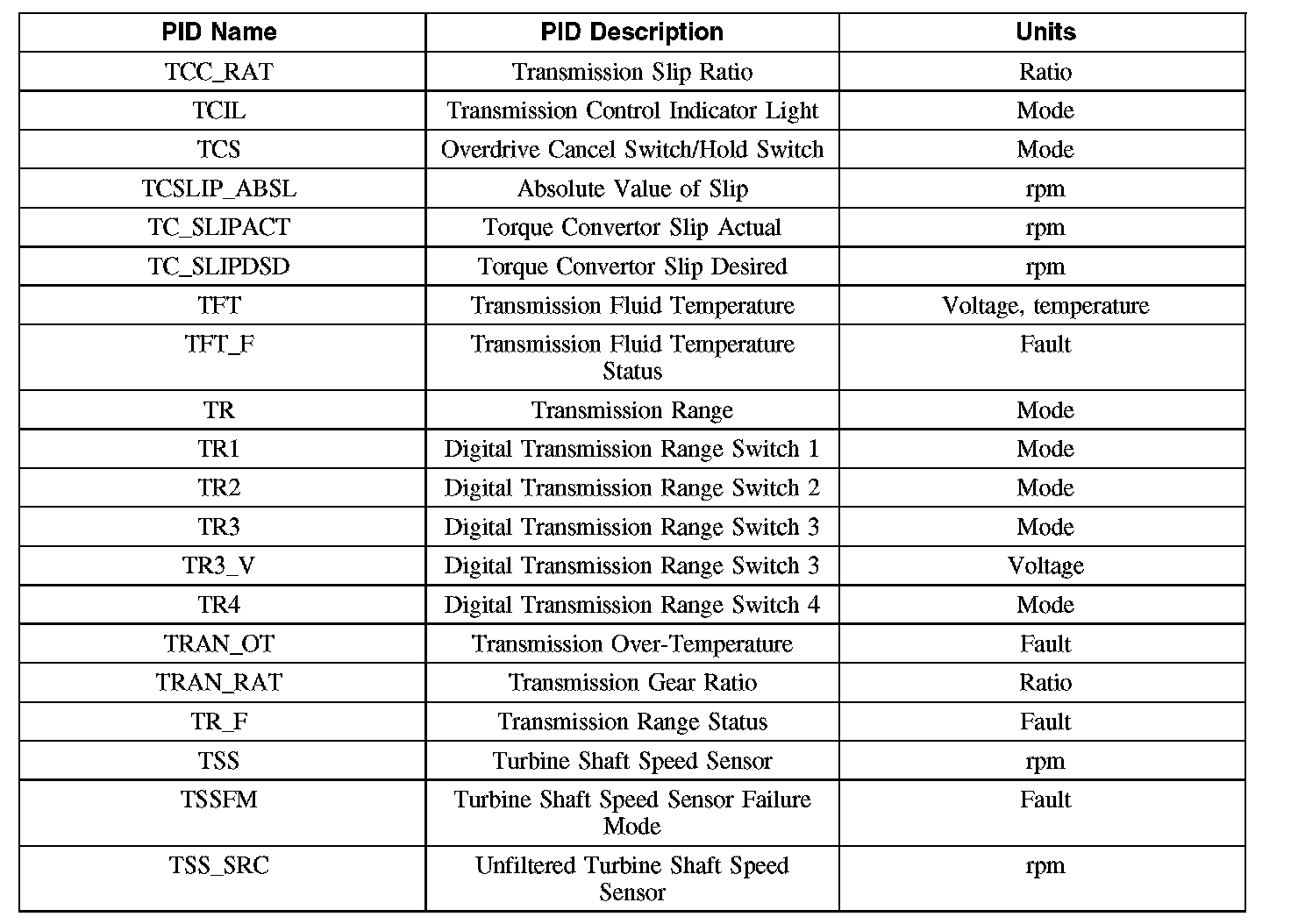

Diagnostic Parameters Identification (PID) Chart (Part 2):
