Ignition Lock Cylinder - Functional

IGNITION LOCK CYLINDER - FUNCTIONAL







Removal and Installation
1. Disconnect the battery ground cable.
2. Insert the ignition key and turn to the RUN position.

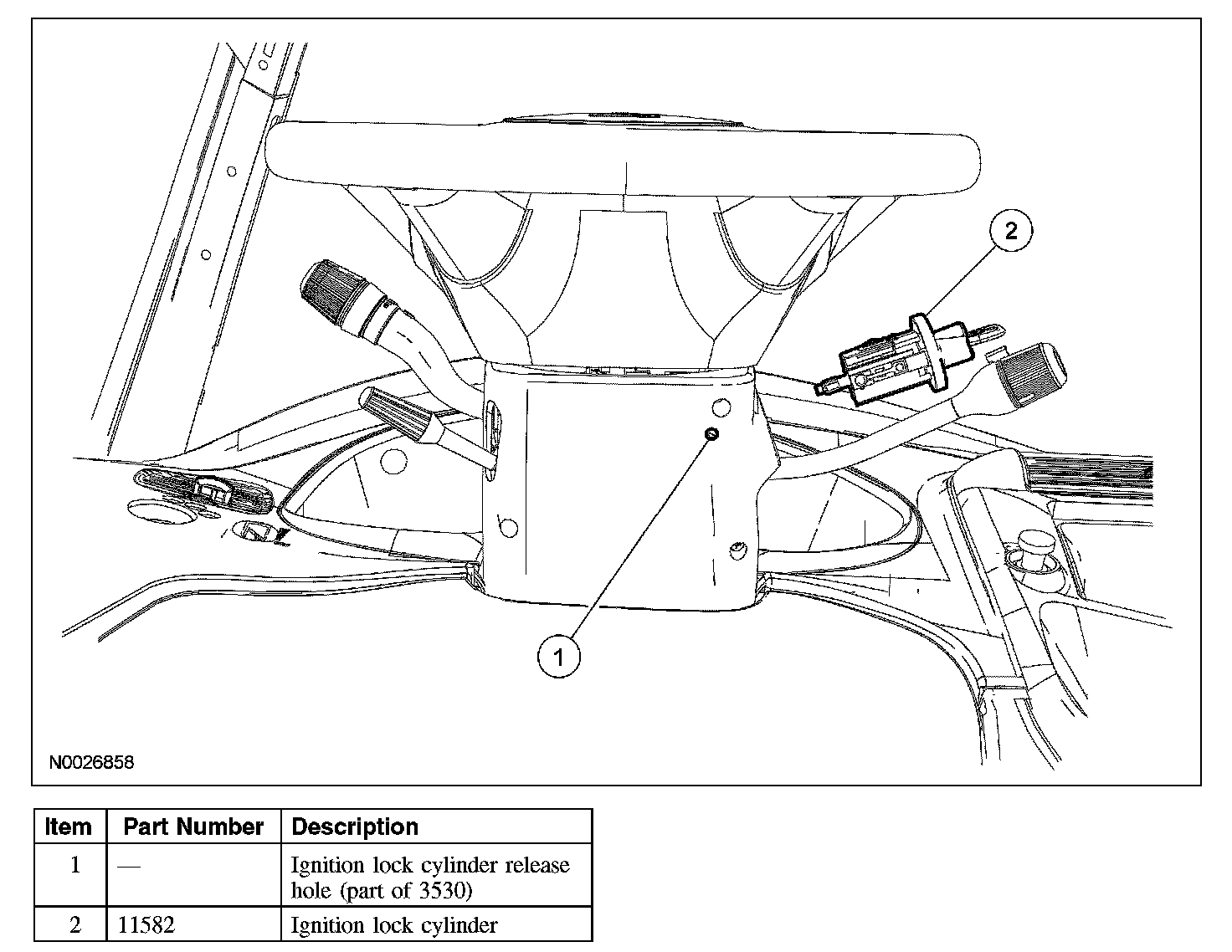

3. Press the ignition lock cylinder release pin and remove the ignition lock cylinder.
4. To install, reverse the removal procedure.
- Verify ignition lock cylinder operation.
