Pressure Feedback Exhaust Sensor: Service and Repair

DIFFERENTIAL PRESSURE FEEDBACK EXHAUST GAS RECIRCULATION (EGR) SENSOR

Exploded View

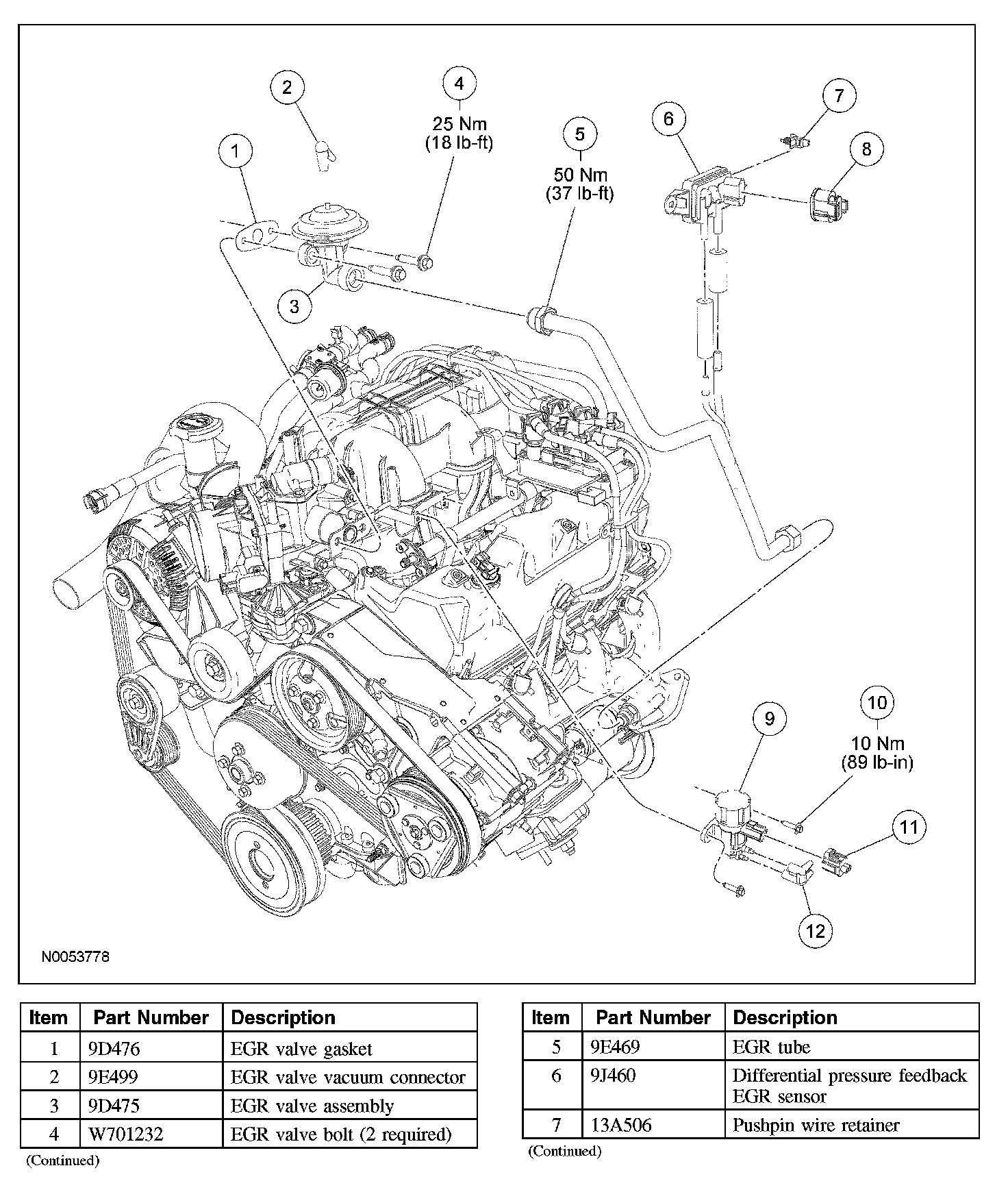

Part 1:

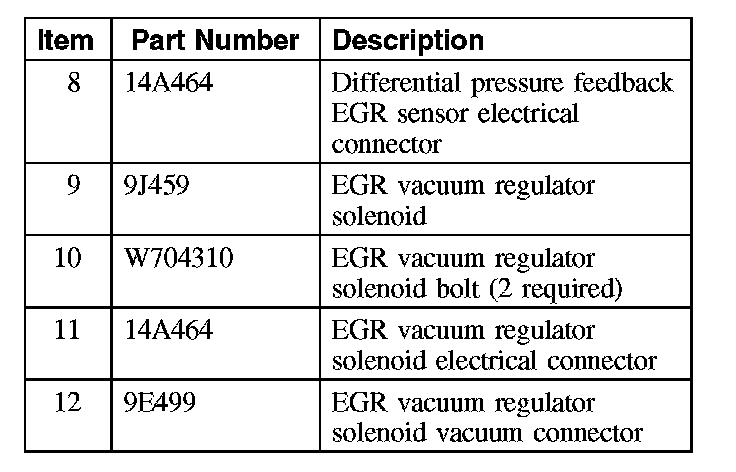

Part 2:

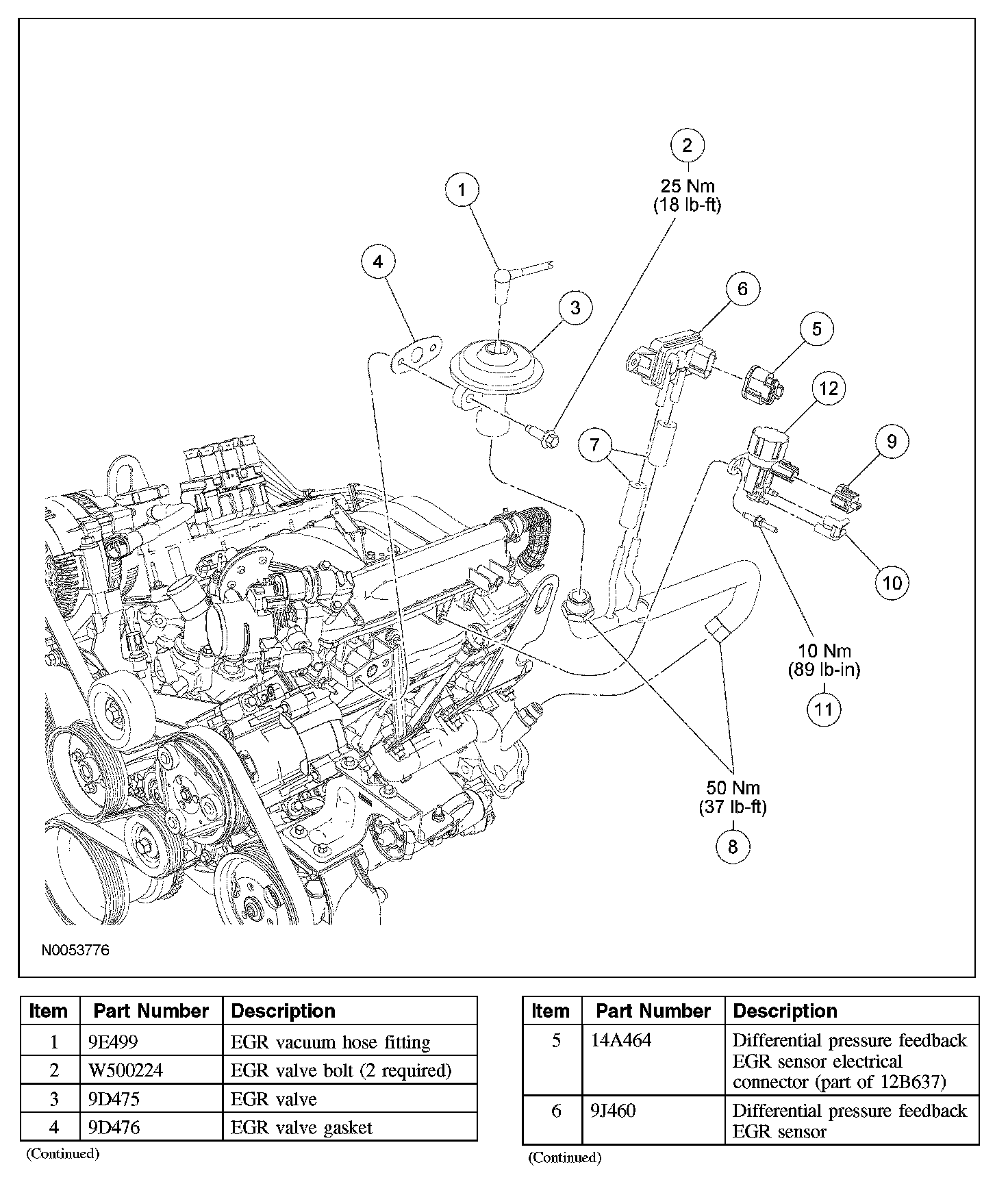

Part 1:

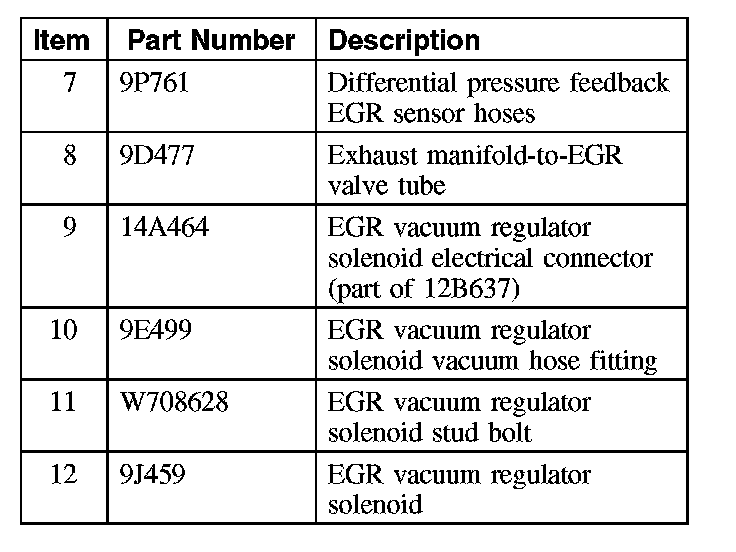

Part 2:

Removal and Installation
1. Disconnect the pushpin retainer from the differential pressure feedback EGR sensor.
2. Disconnect the differential pressure feedback EGR sensor electrical connector.
3. Remove the differential pressure feedback EGR sensor from the hoses.
4. To install, reverse the removal procedure.
