Grille: Service and Repair

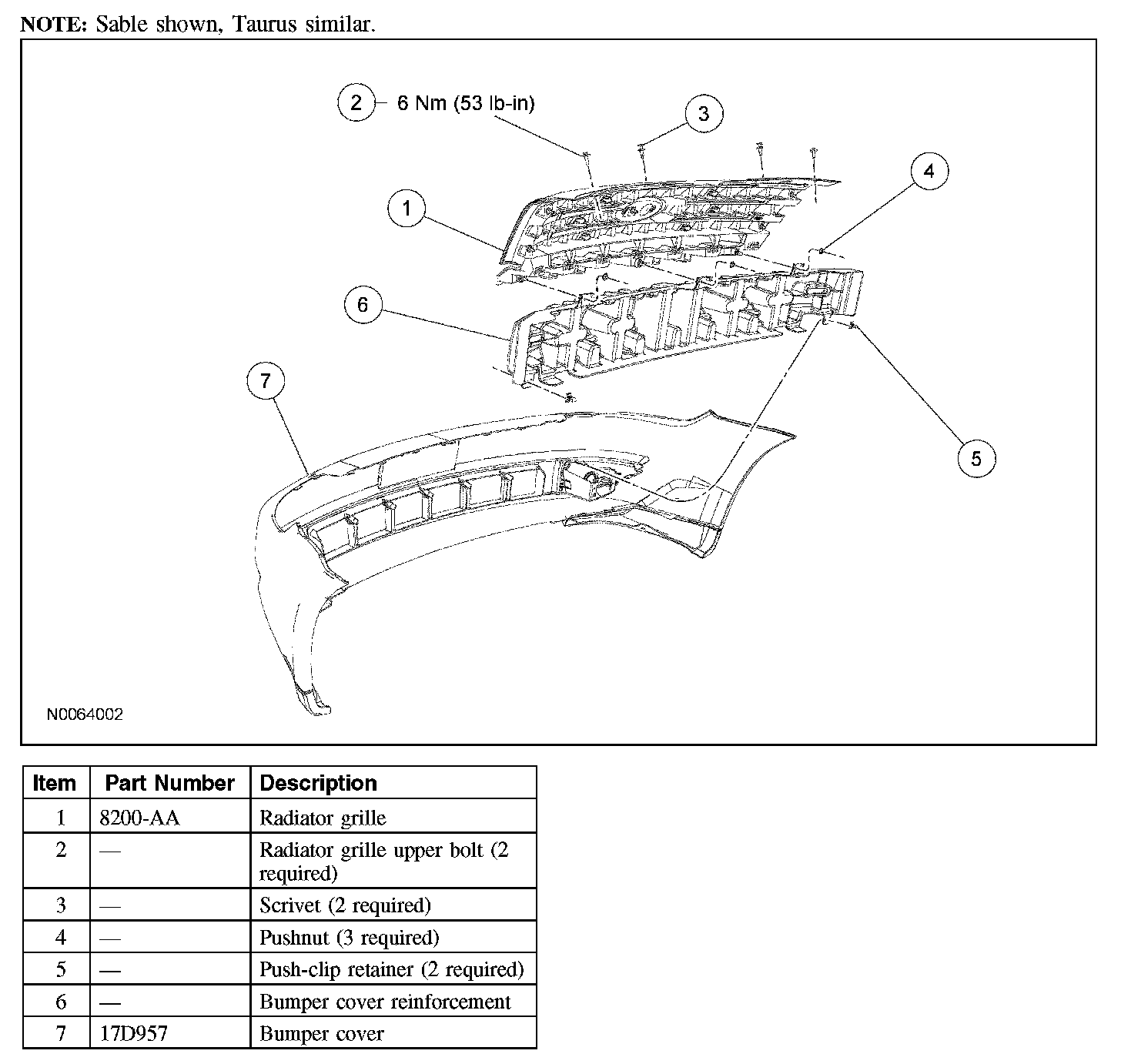

RADIATOR GRILLE







Removal and Installation
1. Remove the front bumper cover.
2. Remove the bumper cover reinforcement-to-radiator grille pushnuts.
3. Release the push-clip retainers and remove the bumper cover reinforcement.
4. Release the retaining clips on the bumper and remove the radiator grille.
5. To install, reverse the removal procedure.
