Power Mirror Motor: Service and Repair

EXTERIOR MIRROR MOTOR

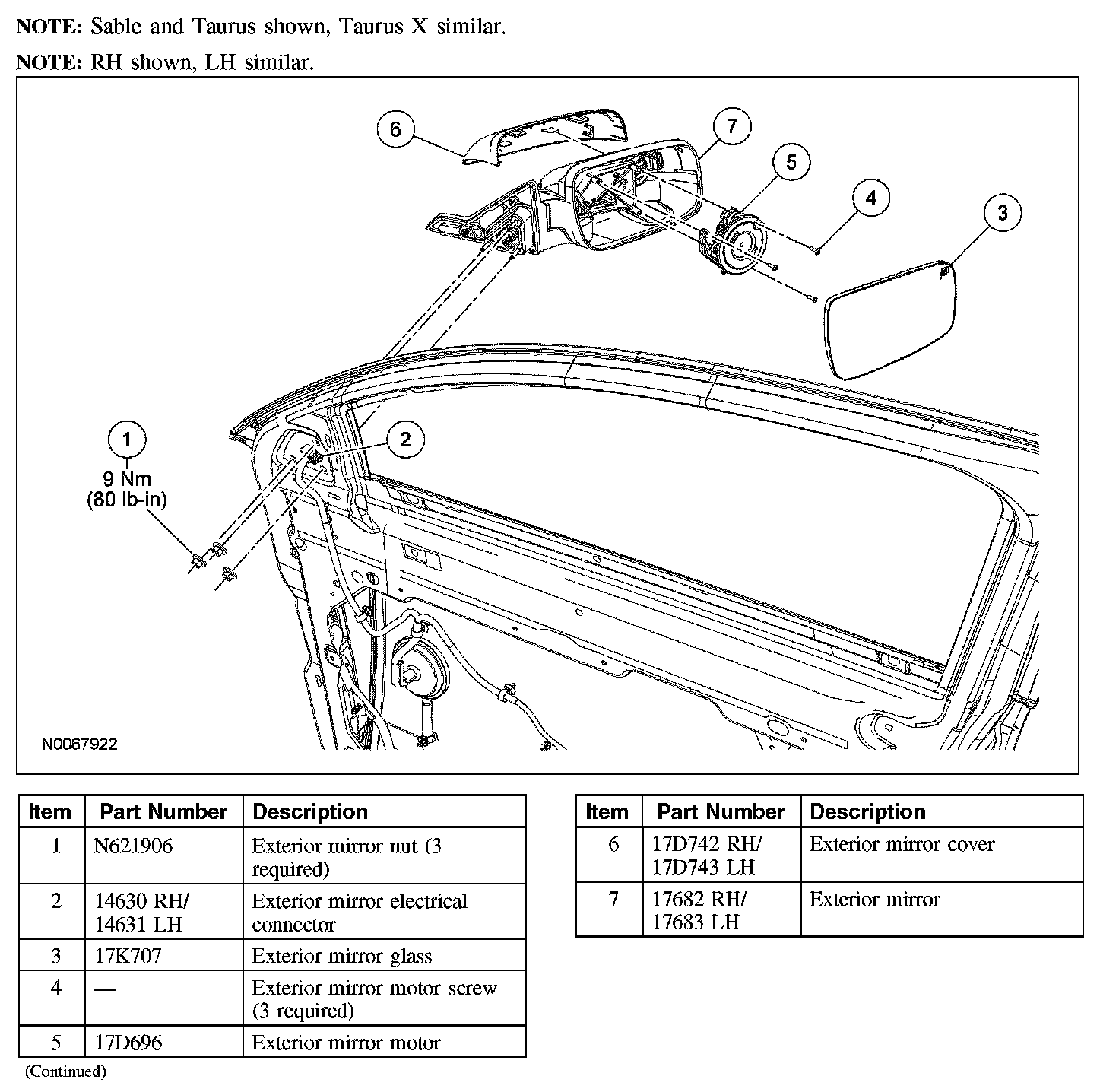

Exploded View







Removal and Installation

NOTE: Sable and Taurus shown, Taurus X similar.

1. Remove the exterior mirror glass.
2. Remove the 3 exterior mirror motor screws.







3. Remove the exterior mirror motor.
- Disconnect the electrical connector.

4. To install, reverse the removal procedure.
