Air Duct: Service and Repair

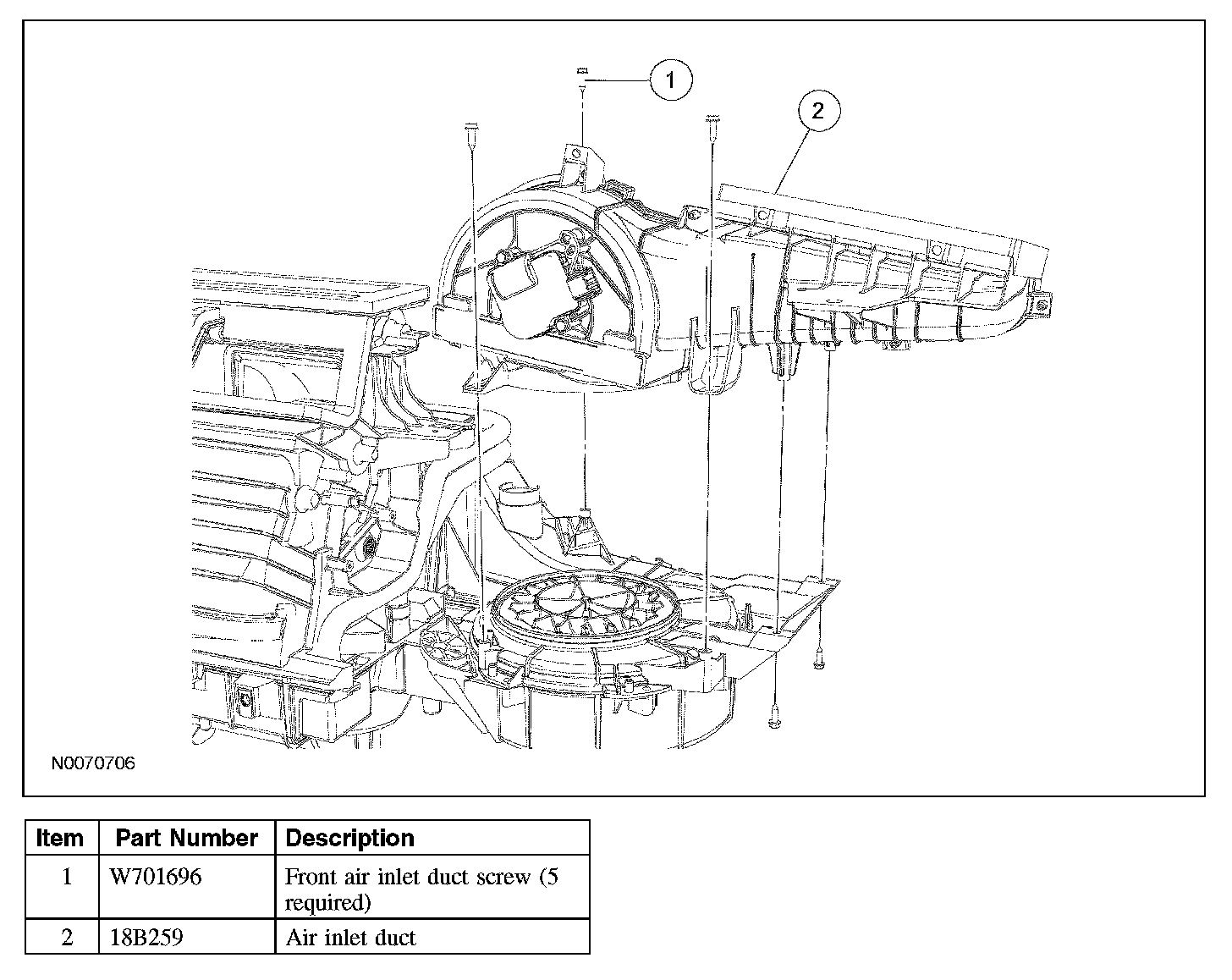

AIR INLET DUCT







Removal and Installation
1. Remove the heater core and evaporator core housing. Housing Assembly HVAC
2. Remove the 5 air inlet duct screws.
3. Remove the air inlet duct.
4. To install, reverse the removal procedure.
