Cabin Temperature Sensor / Switch: Service and Repair

IN-VEHICLE TEMPERATURE SENSOR

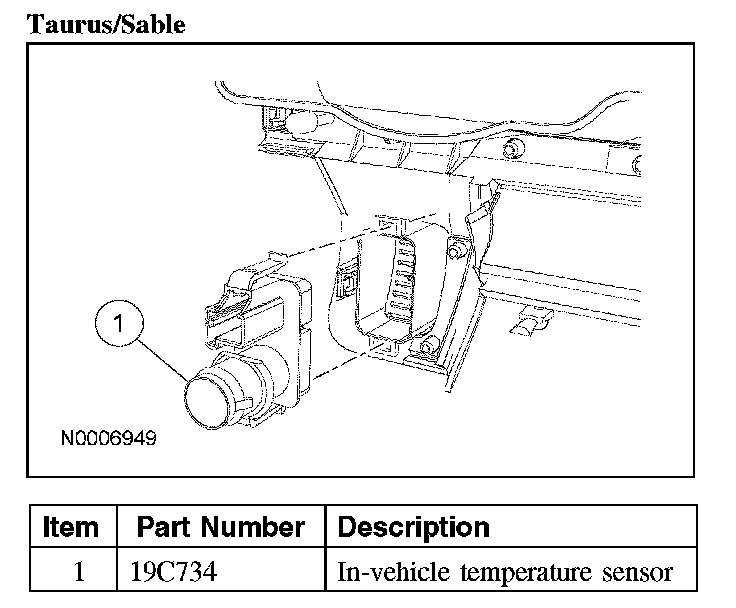

Taurus/Sable:

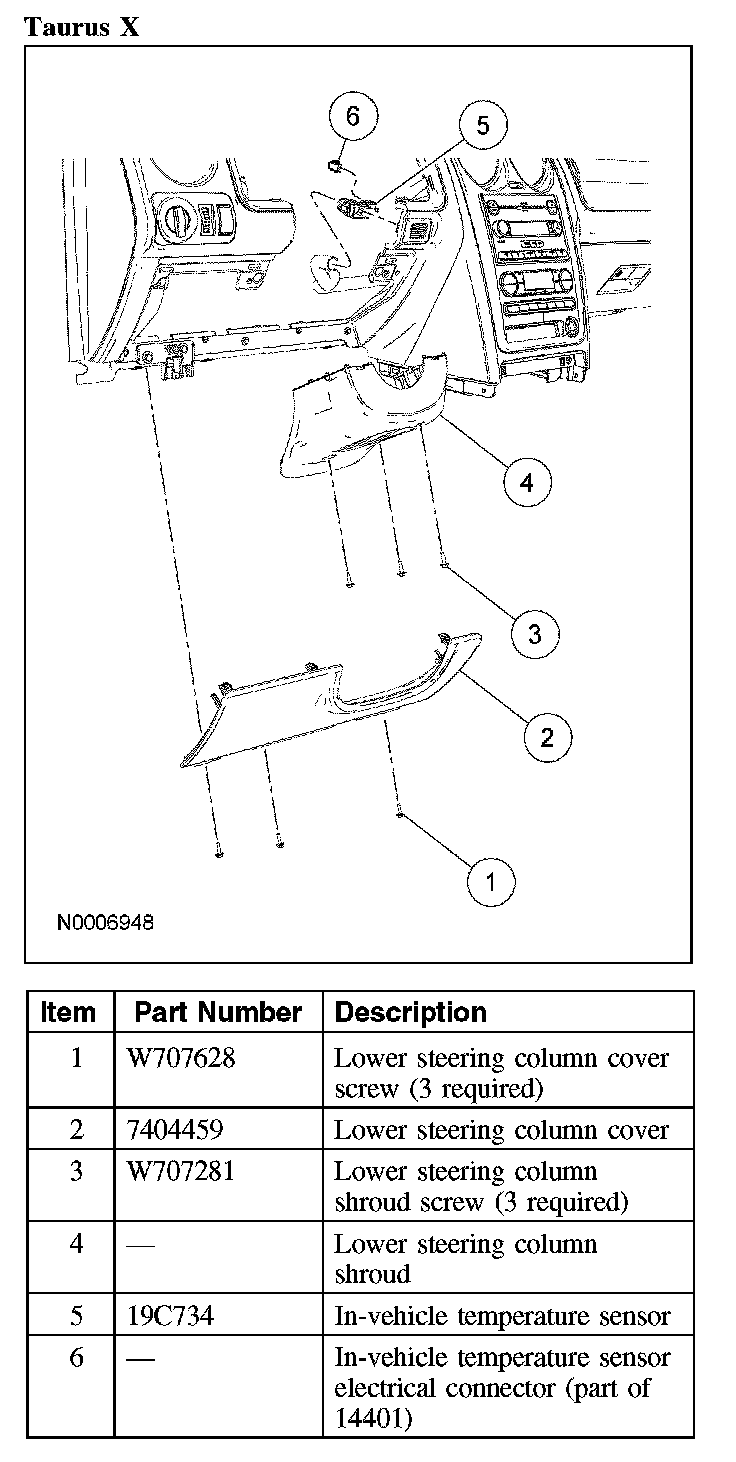

Taurus X:

Removal and Installation

Taurus/Sable
1. Remove the instrument cluster finish panel.

Taurus X
2. Remove the 3 lower steering column cover screws.
3. Remove the lower steering column cover.
4. Remove the 3 lower steering column shroud screws.
5. Remove the lower steering column shroud.
6. Disconnect the in-vehicle temperature sensor electrical connector.

All vehicles
7. Remove the in-vehicle temperature sensor.
8. To install, reverse the removal procedure.
