Test B: Transmission Control (TC) Switch Does Not Operate Correctly

PINPOINT TEST B: TRANSMISSION CONTROL (TC) SWITCH DOES NOT OPERATE CORRECTLY

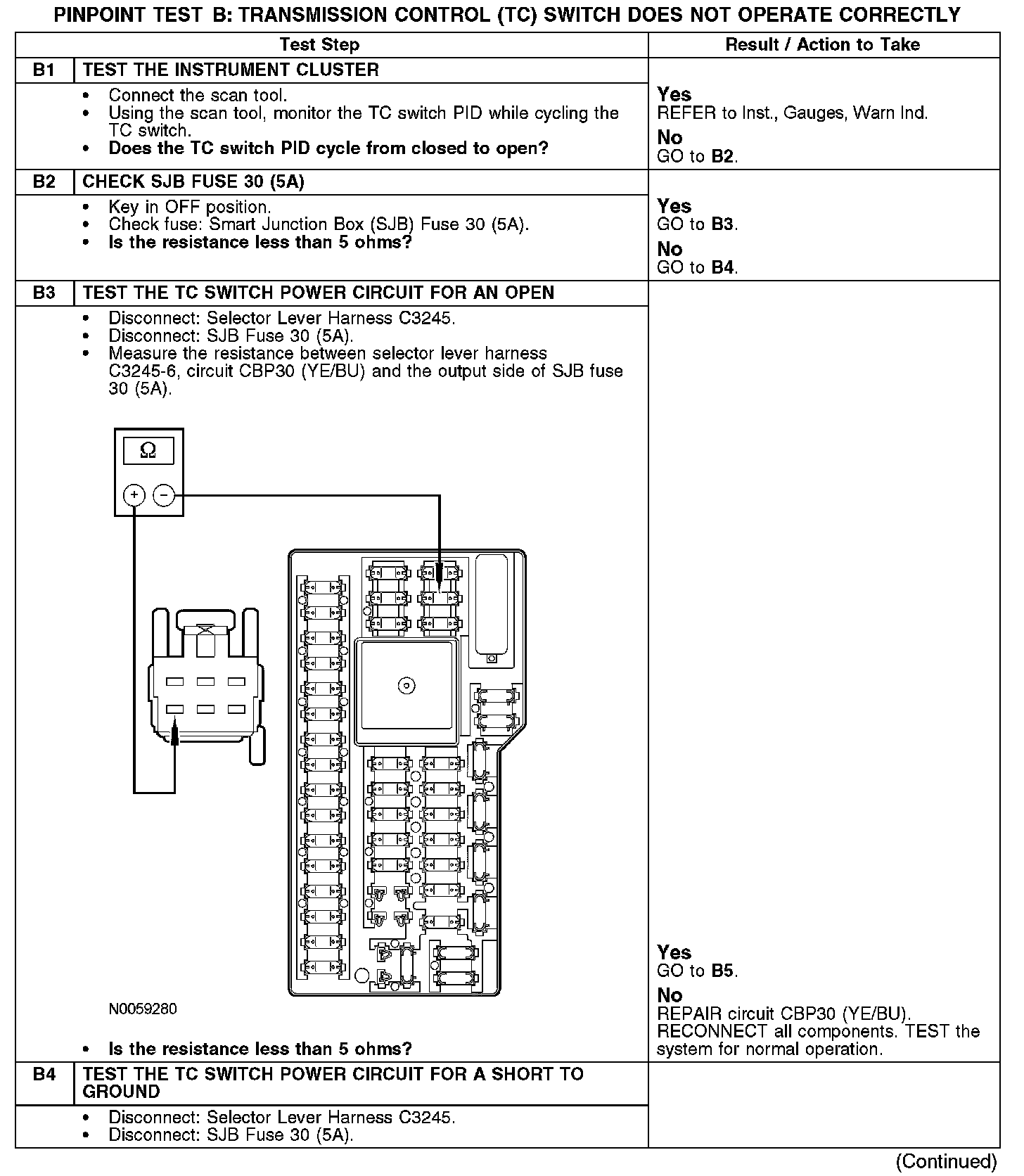

B1-B4:

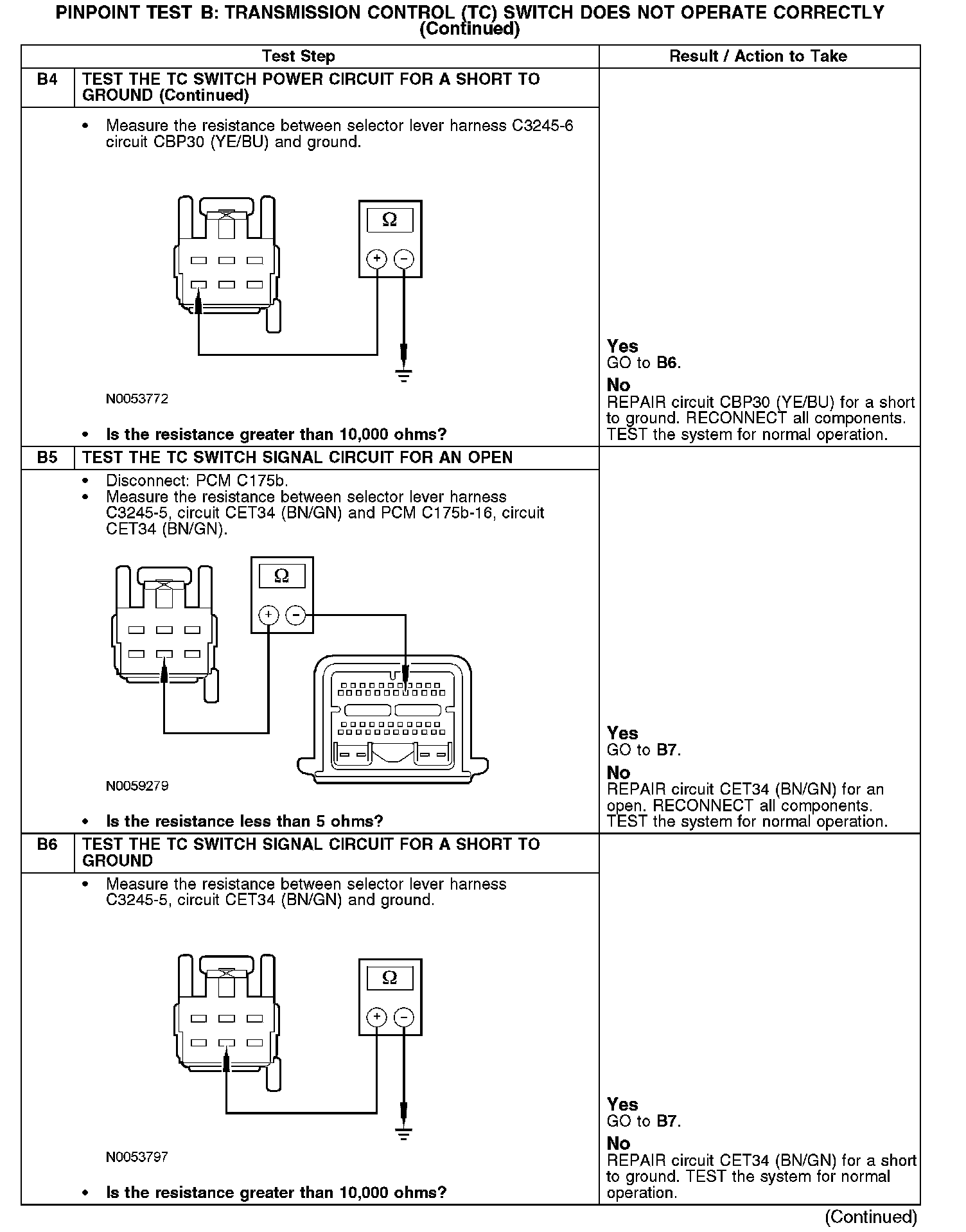

B4-B6:

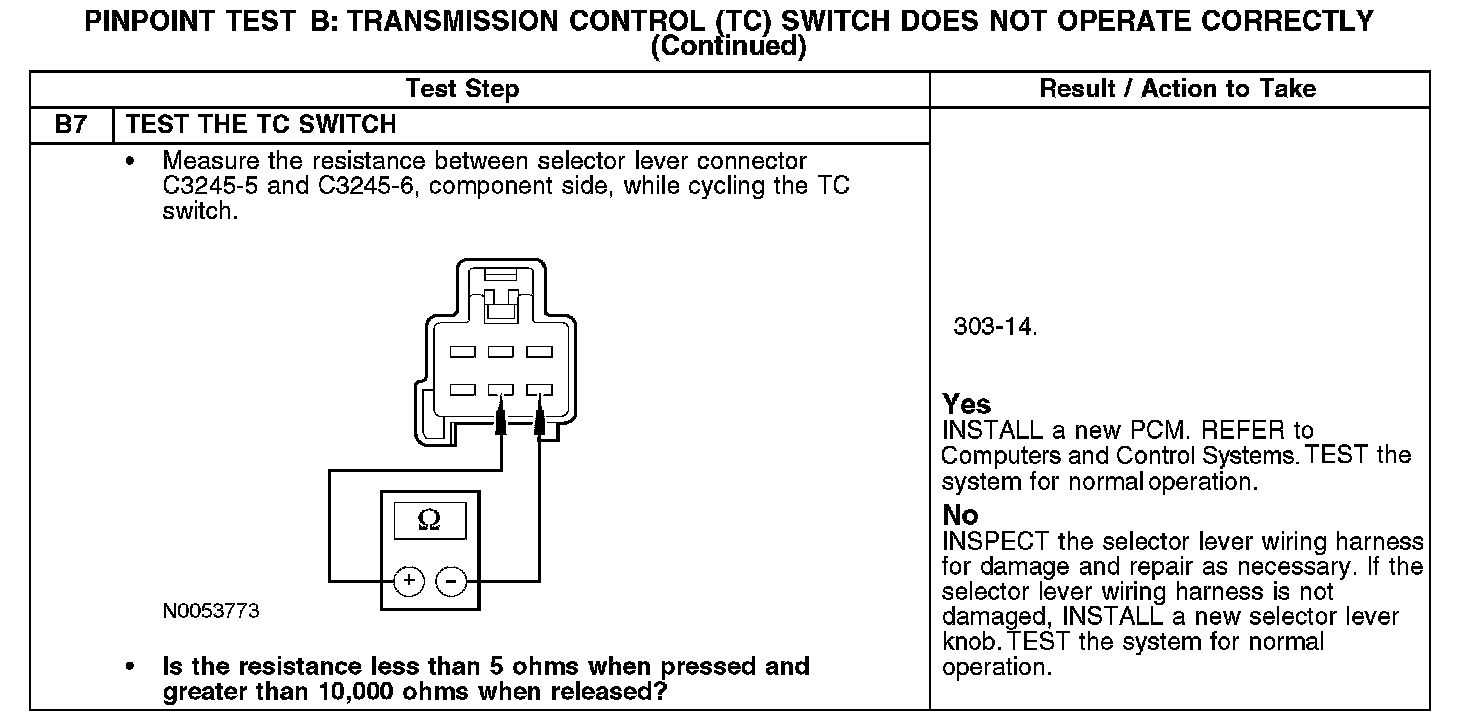

B7:
