Wiper Switch: Service and Repair

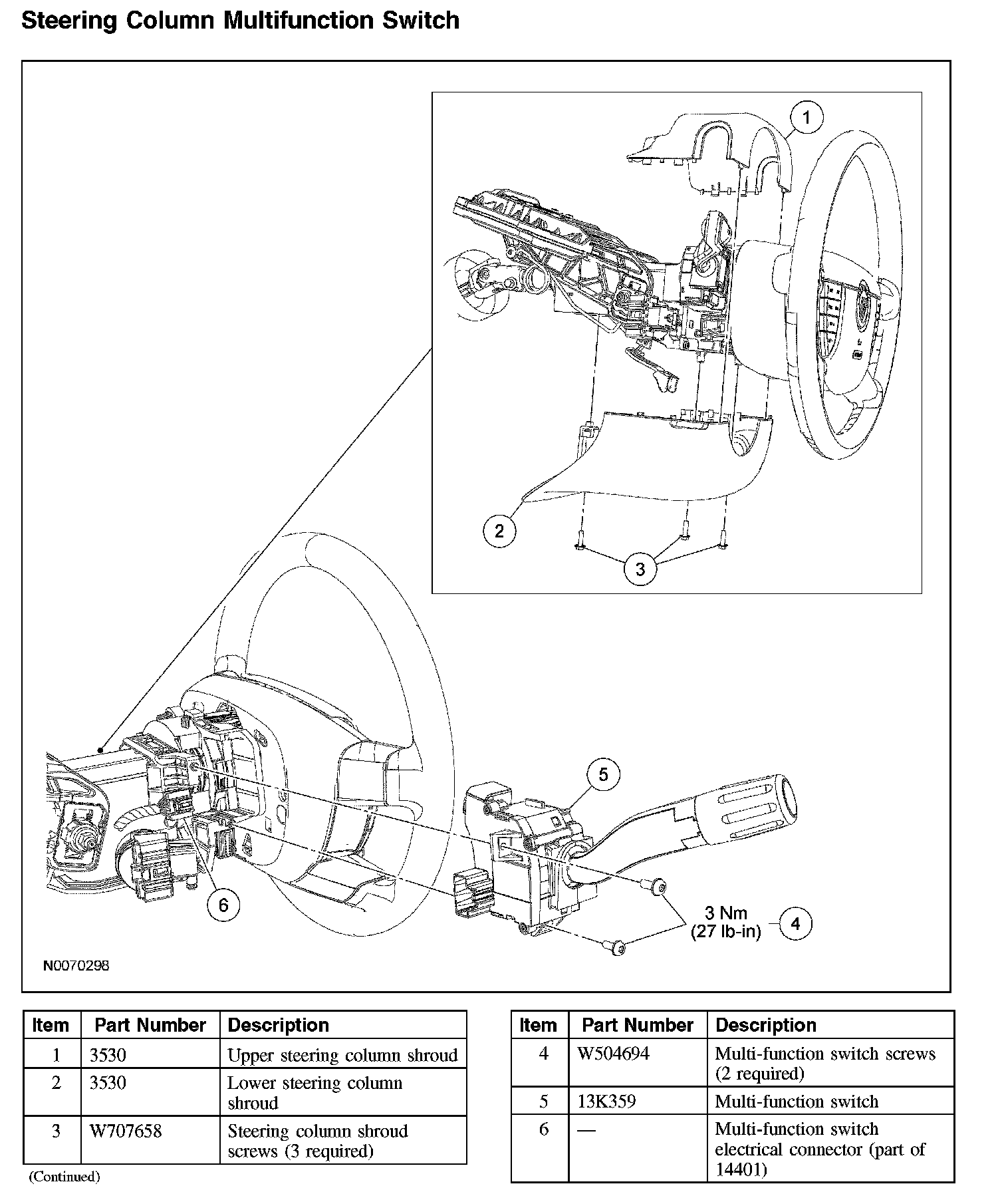

Steering Column Multifunction Switch

Steering Column Multifunction Switch:

Removal and Installation
1. Remove the 3 steering column shroud screws.
2. Separate and remove the upper and lower steering column shrouds.
3. Disconnect the multi-function switch electrical connector.
4. Remove the 2 screws and the multi-function switch.
^ To install, tighten to 3 Nm (27 lb-inch).
5. To install, reverse the removal procedure.
