Heated Seat Module - Rear: Notes

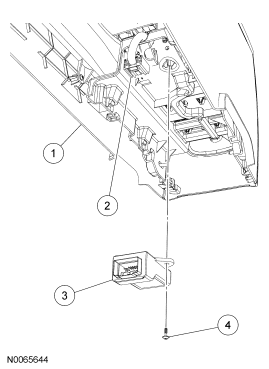

Fig 1: Heated Seat Module - Rear
GF0045450Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Front floor console
2 - Electrical connector
3 14C724 Heated seat module, rear
4 - Screw
