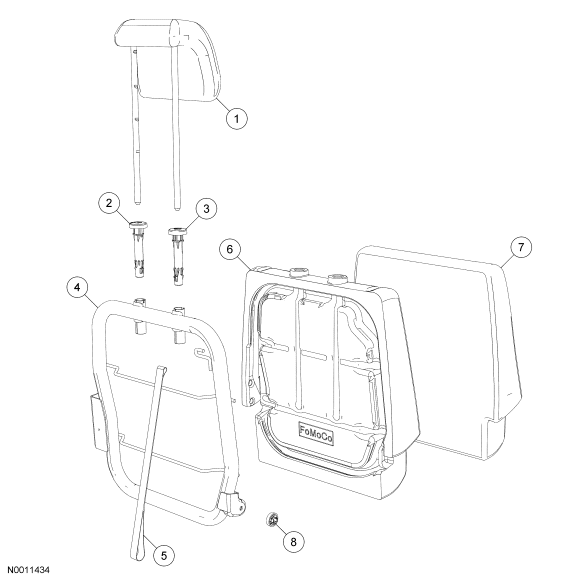

Seat - Exploded View, Third Row
| Item | Part Number | Description |
|---|---|---|
| 1 | 611A08 | Head restraint assembly |
| 2 | 610A16 | Head restraint guide |
| 3 | 610A16 | Head restraint guide |
| 4 | - | Backrest frame |
| 5 | - | Pull strap |
| 6 | - | Backrest foam pad |
| 7 | 66601 | Backrest trim cover |
| 8 | - | Bushing |

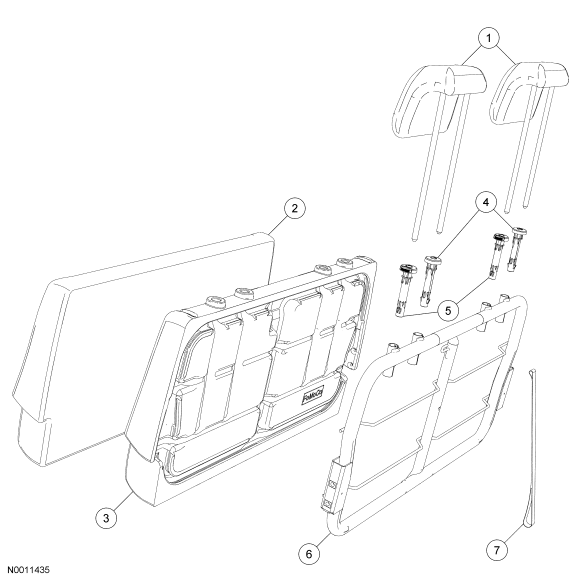

| Item | Part Number | Description |
|---|---|---|
| 1 | 611A08 | Head restraint assembly |
| 2 | 66601 | Backrest trim cover |
| 3 | - | Backrest foam pad |
| 4 | 610A16 | Head restraint guides |
| 5 | 610A16 | Head restraint guides |
| 6 | 61018 | Backrest frame |
| 7 | - | Pull strap |

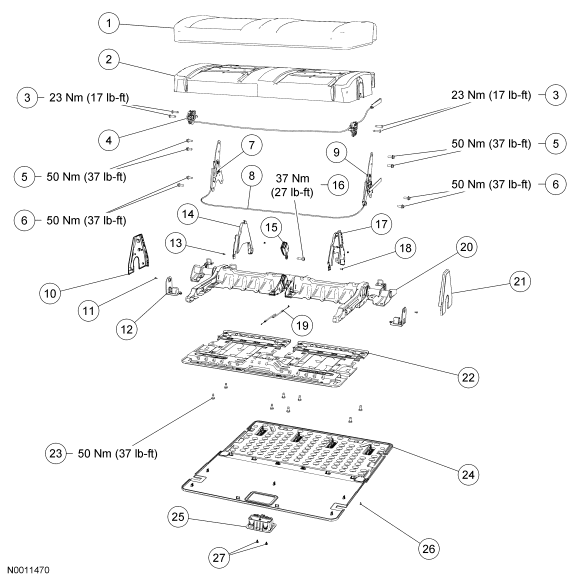

| Item | Part Number | Description |
|---|---|---|
| 1 | 63805 | Cushion trim cover |
| 2 | 63840 | Cushion foam pad |
| 3 | W709835 | Backrest latch-to-backrest frame bolts (2 required) |
| 4 | - | Backrest latch |
| 5 | - | Pin-type retainer |
| 6 | 61349 | Backrest latch inboard cover |
| 7 | 56910 | Screw (2 required) |
| 8 | - | Safety belt buckle |
| 9 | - | Safety belt buckle bolt |
| 10 | W709835 | Backrest latch-to-cushion frame bolts (2 required) |
| 11 | W505266 | Floor latch bolts (2 required) |
| 12 | - | Floor latch assembly |
| 13 | 56910 | Screw (2 required) |
| 14 | 61348 | Inboard pivot cover |
| 15 | - | Backrest latch outboard cover |
| 16 | 56910 | Screw |
| 17 | 601L60 | Pivot release cable |
| 18 | - | Bushing |
| 19 | 638A74 | Floor latch cover |
| 20 | 613B90 | Pivot tube assembly |
| 21 | 63160 | Cushion frame |
| 22 | W709835 | Cushion frame-to-pivot tube assembly bolts (4 required) |
| 23 | 605C12 | Pivot bolt |
| 24 | - | Outboard pivot cover |
| 25 | W504694 | Screw (2 required) |
| 26 | - | Load floor panel |
| 27 | 61354 | Pivot release handle |
| 28 | 463K00 | Rivets (2 required) |

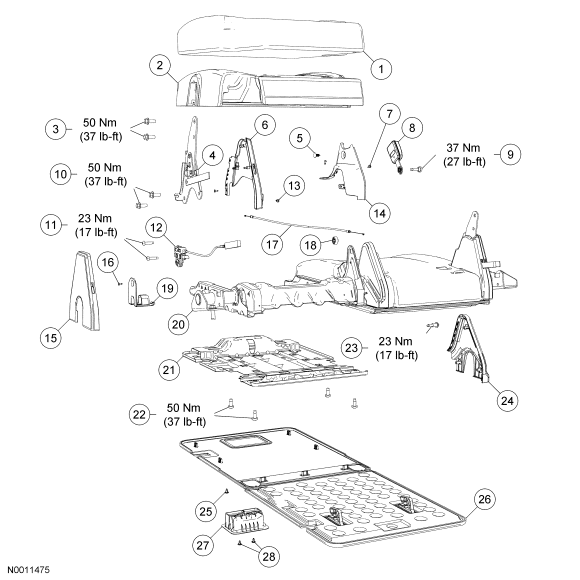

| Item | Part Number | Description |
|---|---|---|
| 1 | 63805 | Cushion trim cover |
| 2 | - | Cushion foam pad |
| 3 | W520114 | Floor latch bolts (4 required) |
| 4 | 61203 | Floor latch assembly |
| 5 | W709835 | Backrest latch-to-backrest frame bolts (4 required) |
| 6 | W709835 | Backrest latch-to-cushion frame bolts (4 required) |
| 7 | 62184 | RH backrest latch |
| 8 | 601L60 | Backrest latch cable |
| 9 | 62184 | LH backrest latch |
| 10 | - | RH backrest latch outboard cover |
| 11 | 56910 | Screw (2 required) |
| 12 | - | Floor latch cover (2 required) |
| 13 | 56910 | Screw (3 required) |
| 14 | - | RH backrest latch inboard cover |
| 15 | - | Safety belt buckle (2 required) |
| 16 | - | Safety belt buckle bolt (2 required) |
| 17 | - | LH backrest latch inboard cover |
| 18 | 56910 | Screw (3 required) |
| 19 | - | Pivot release cable |
| 20 | 613B90 | Pivot tube assembly |
| 21 | - | LH backrest latch outboard cover |
| 22 | - | Cushion frame |
| 23 | W709835 | Cushion frame-to-pivot tube assembly bolt (8 required) |
| 24 | - | Load floor panel |
| 25 | 61354 | Pivot release handle |
| 26 | W504694 | Screw (2 required) |
| 27 | 463K00 | Rivets (2 required) |
- For additional information, refer to the procedures in this article.
