Center Stack Switch Assembly Connector

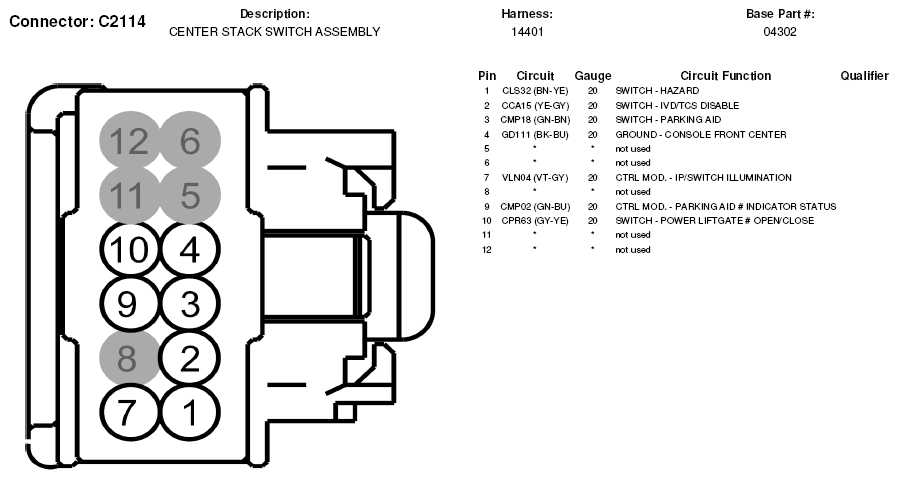

Fig 1: Center Stack Switch Assembly Connector End View (C2114)
