Driver Safety Canopy Module Connector

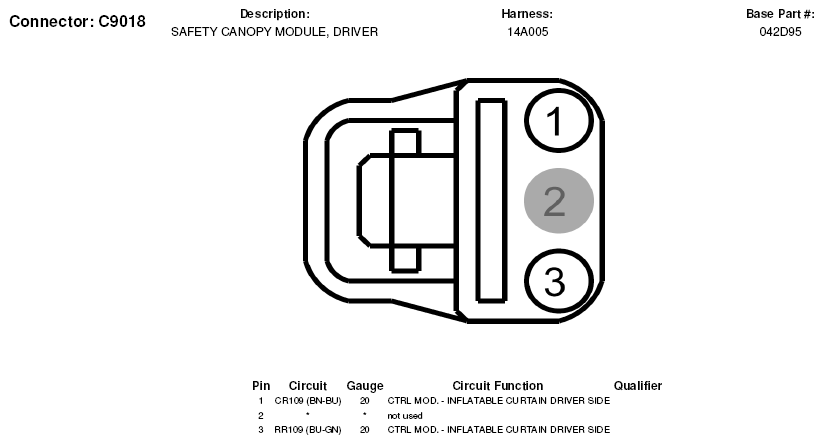

Fig 1: Driver Safety Canopy Module Connector End View (C9018)
G05603555

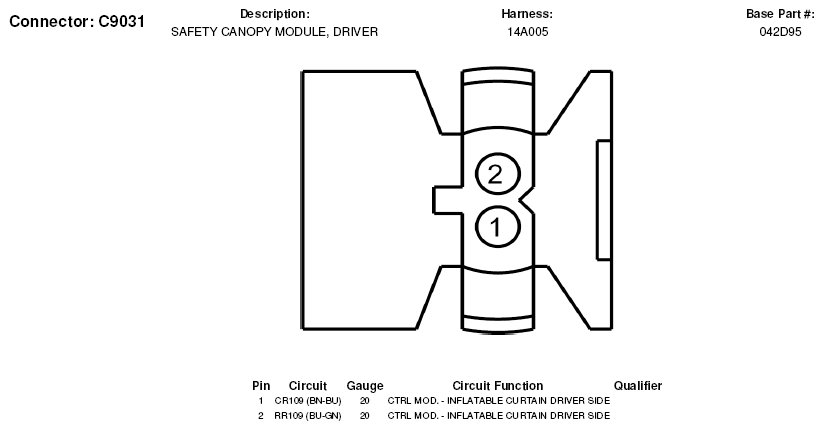

Fig 2: Driver Safety Canopy Module Connector End View (C9031)
G05603562
