Driver Seat Module Connector

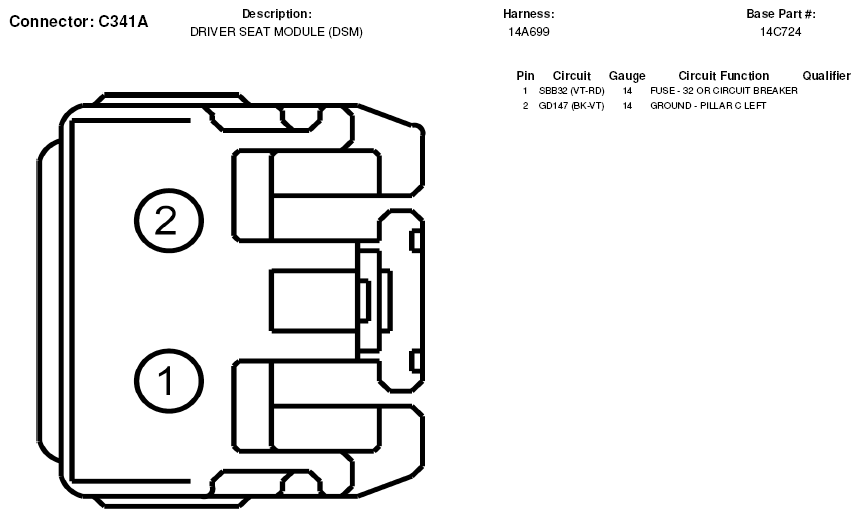

Fig 1: Driver Seat Module Connector End View (C341A)
G05603333

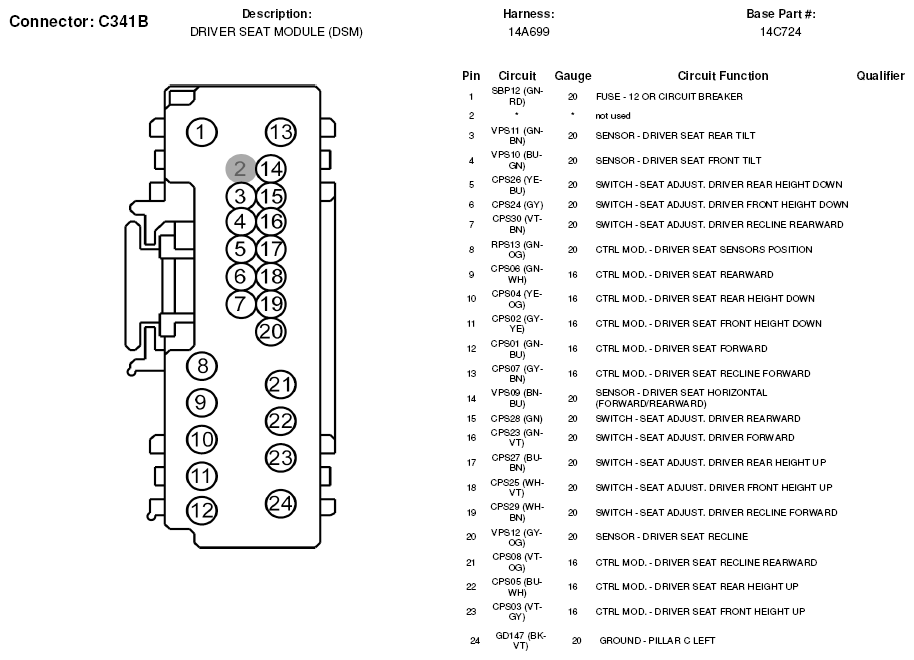

Fig 2: Driver Seat Module Connector End View (C341B)
G05603334

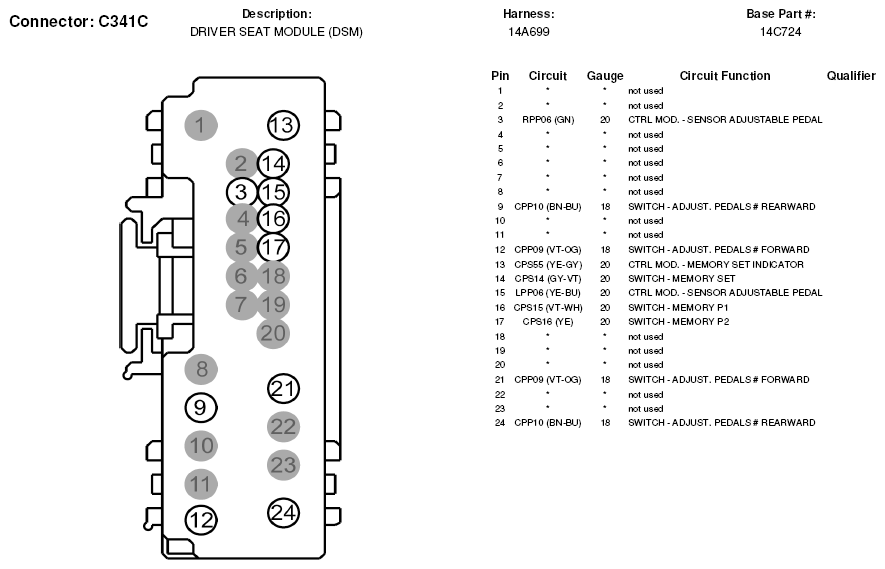

Fig 3: Driver Seat Module Connector End View (C341C)
G05603335

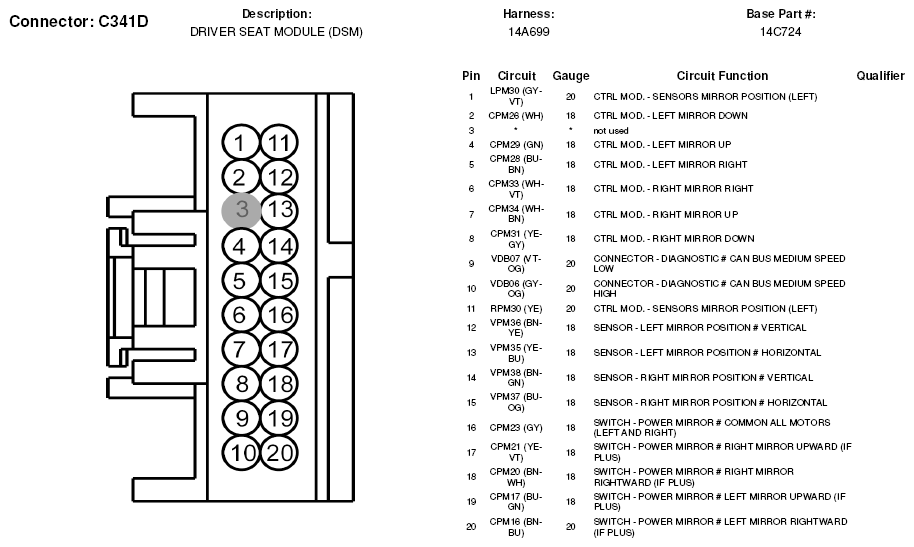

Fig 4: Driver Seat Module Connector End View (C341D)
G05603336
