Driver Side Front Seat Control Switch Connector

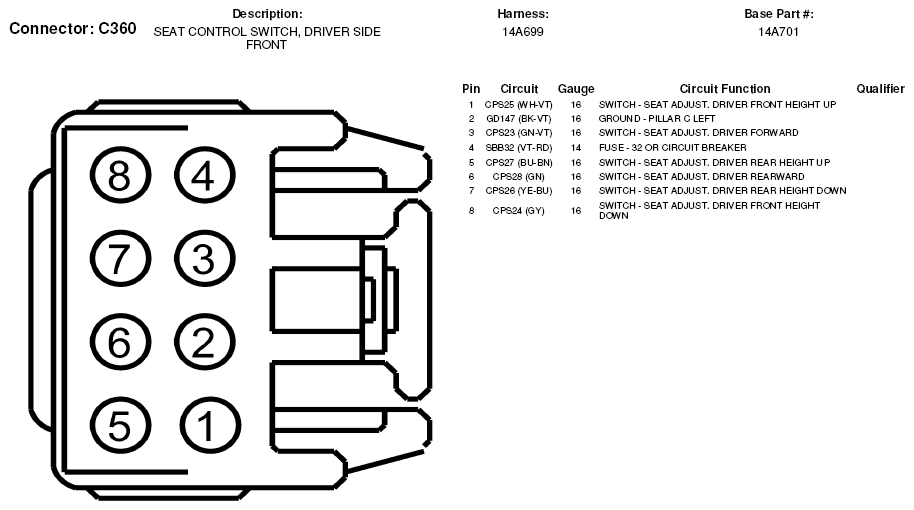

Fig 1: Driver Side Front Seat Control Switch Connector End View (C360)
G05603339

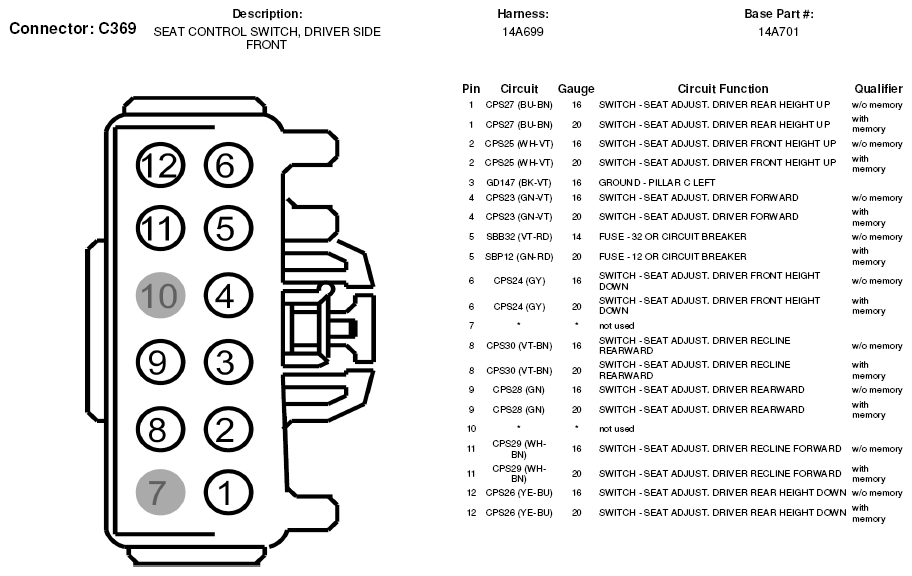

Fig 2: Driver Side Front Seat Control Switch Connector End View (C369)
G05603344
