Rear Auxiliary Function Selector Switch Assembly Connector

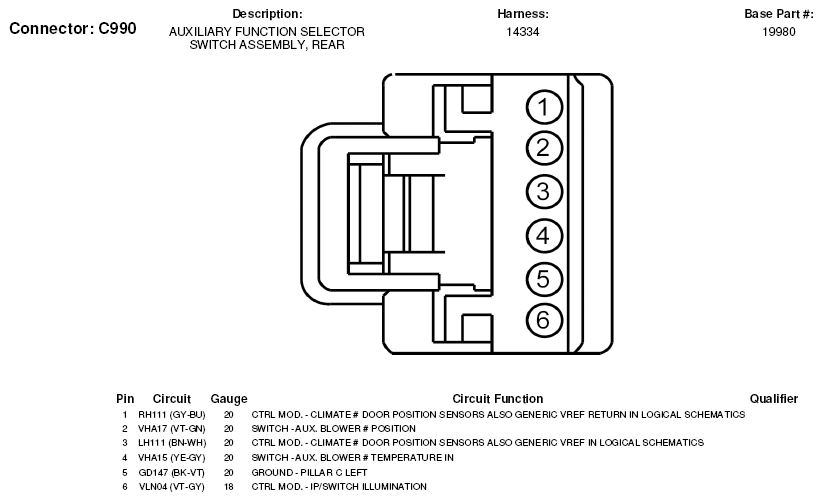

Fig 1: Rear Auxiliary Function Selector Switch Assembly Connector End View (C990)
G05603418
