Driver Air Bag Module Connector

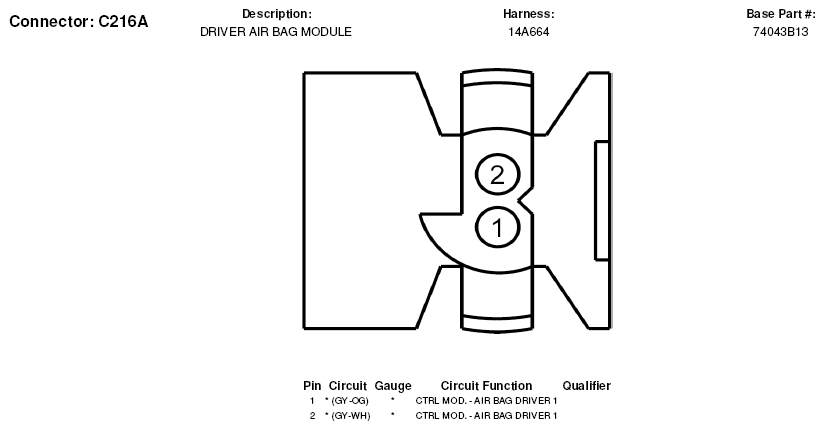

Fig 1: Driver Air Bag Module Connector End View (C216A)
G05603292

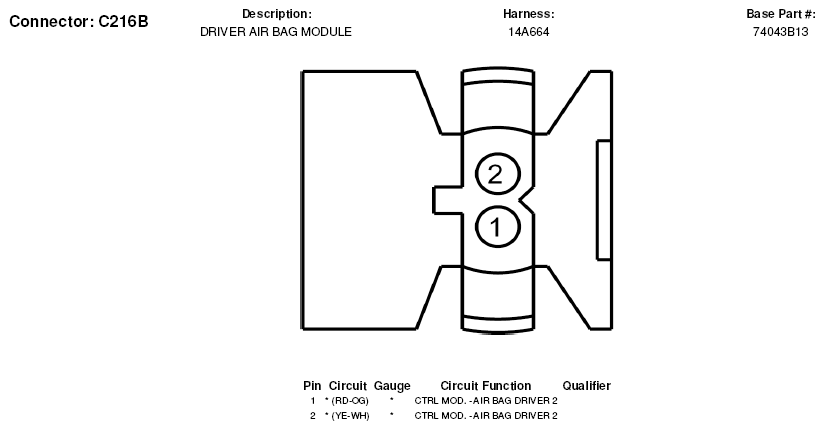

Fig 2: Driver Air Bag Module Connector End View (C216B)
G05603293
