EGR System Module Connector - C1068

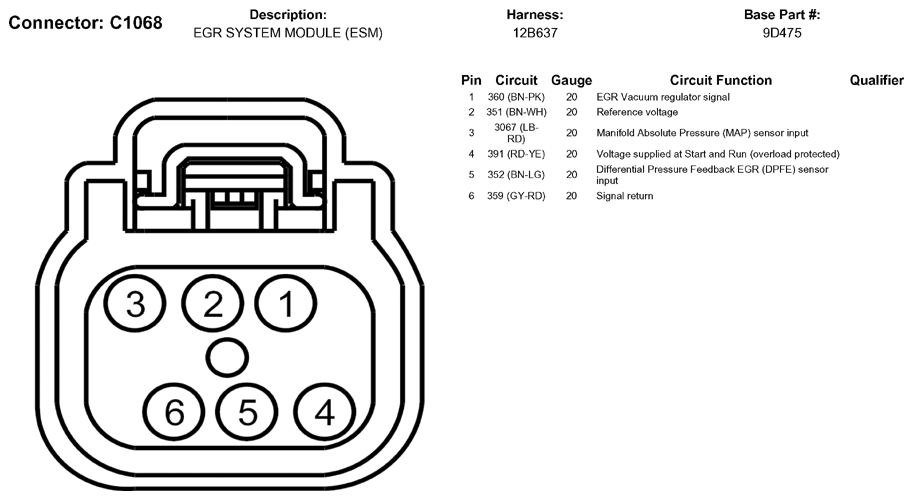

Fig 1: EGR System Module Connector End View - (C1068)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
