Air Flow Meter/Sensor: Service and Repair

Mass Air Flow (MAF) Sensor

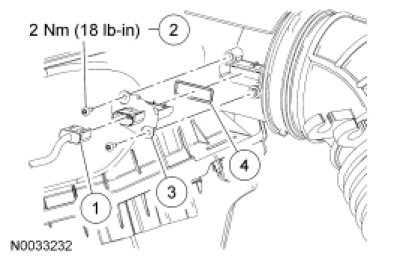

Removal and Installation

1. Turn the ignition switch to the OFF position.

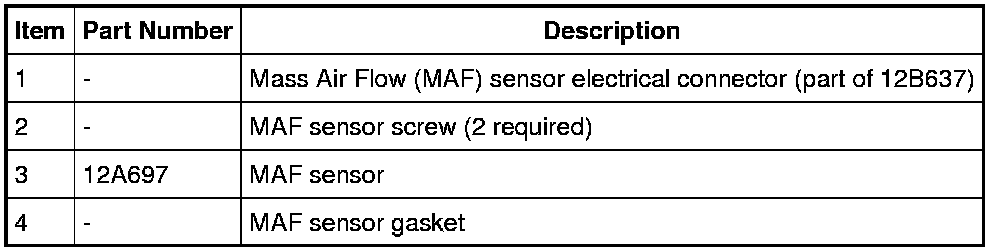

2. Disconnect the Mass Air Flow (MAF) sensor electrical connector.

3. Remove the 2 screws and the MAF sensor.
- To install, tighten to 2 Nm (18 lb-in).

4. To install, reverse the removal procedure.
