Glow Plug Control Module: Service and Repair

Glow Plug Module

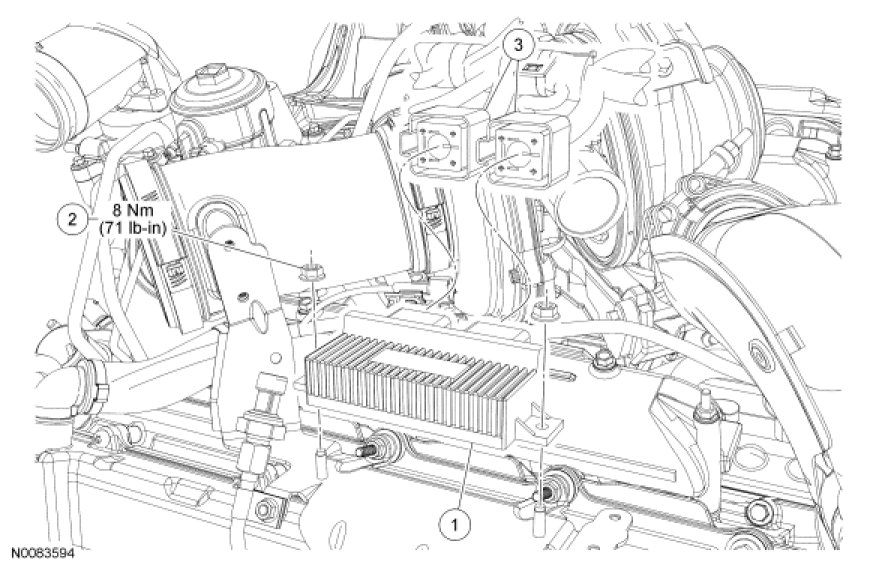

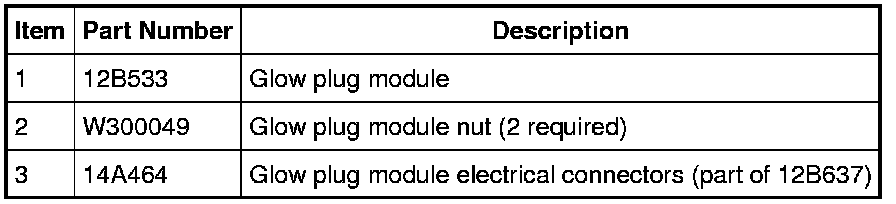

Removal and Installation

1. Disconnect the battery ground cable.

2. Remove the engine cover.

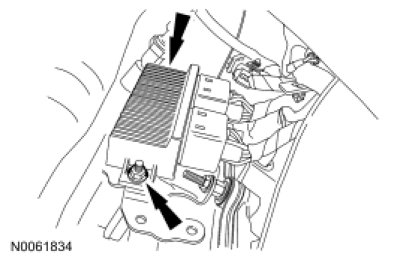

3. Remove the 2 nuts for the glow plug module.
- To install, tighten to 8 Nm (71 lb-in).

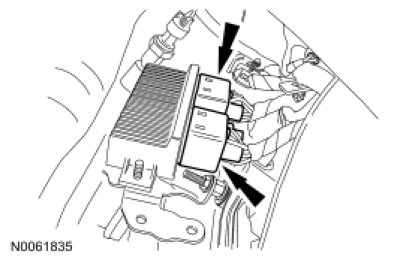

4. Position the glow plug module and disconnect the glow plug module electrical connectors. Remove the glow plug module.





5. To install, reverse the removal procedure.
