General Specifications

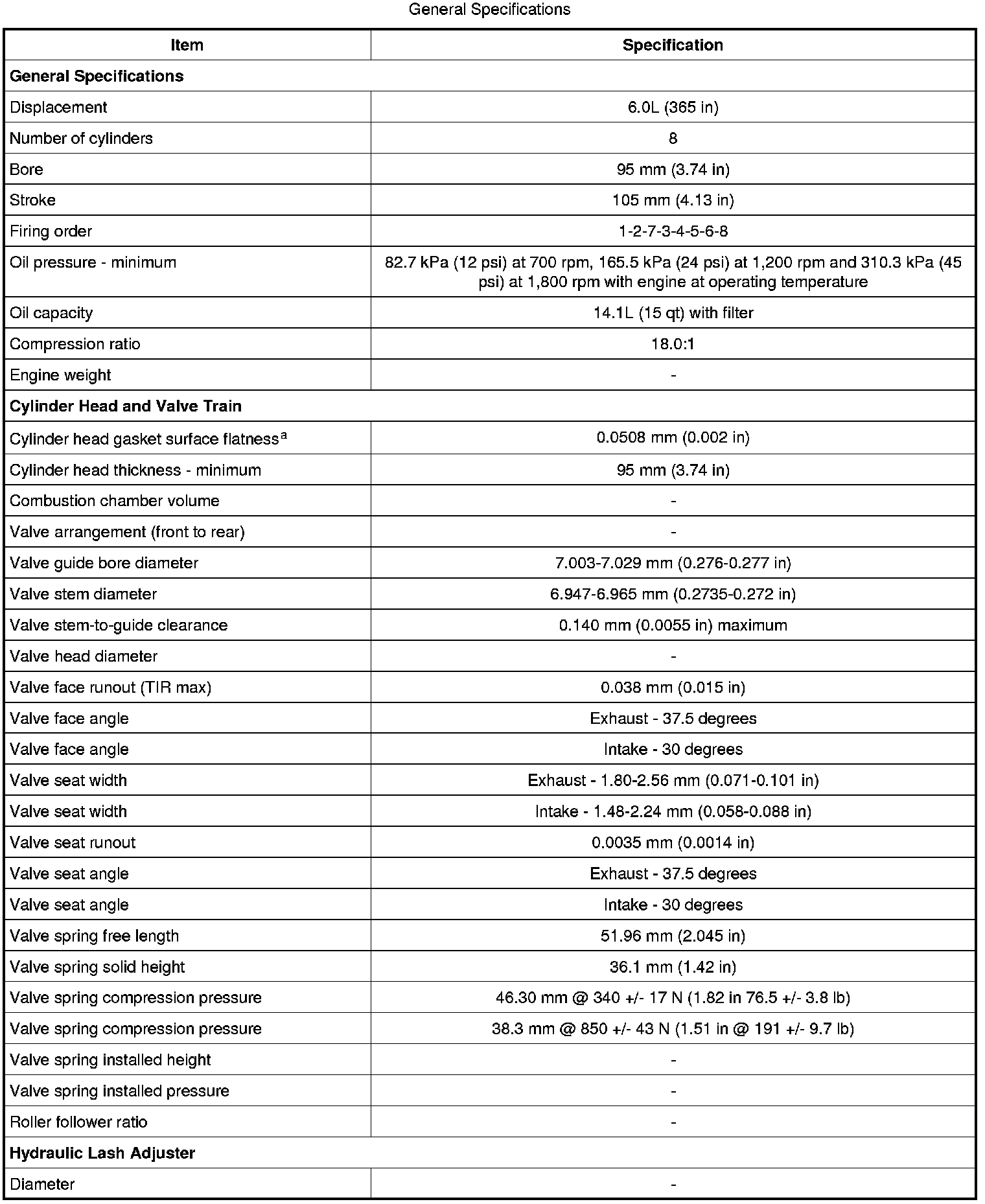

6.0L (Engine / Cylinder Head And Valve Train / Hydraulic Valve Adjuster):

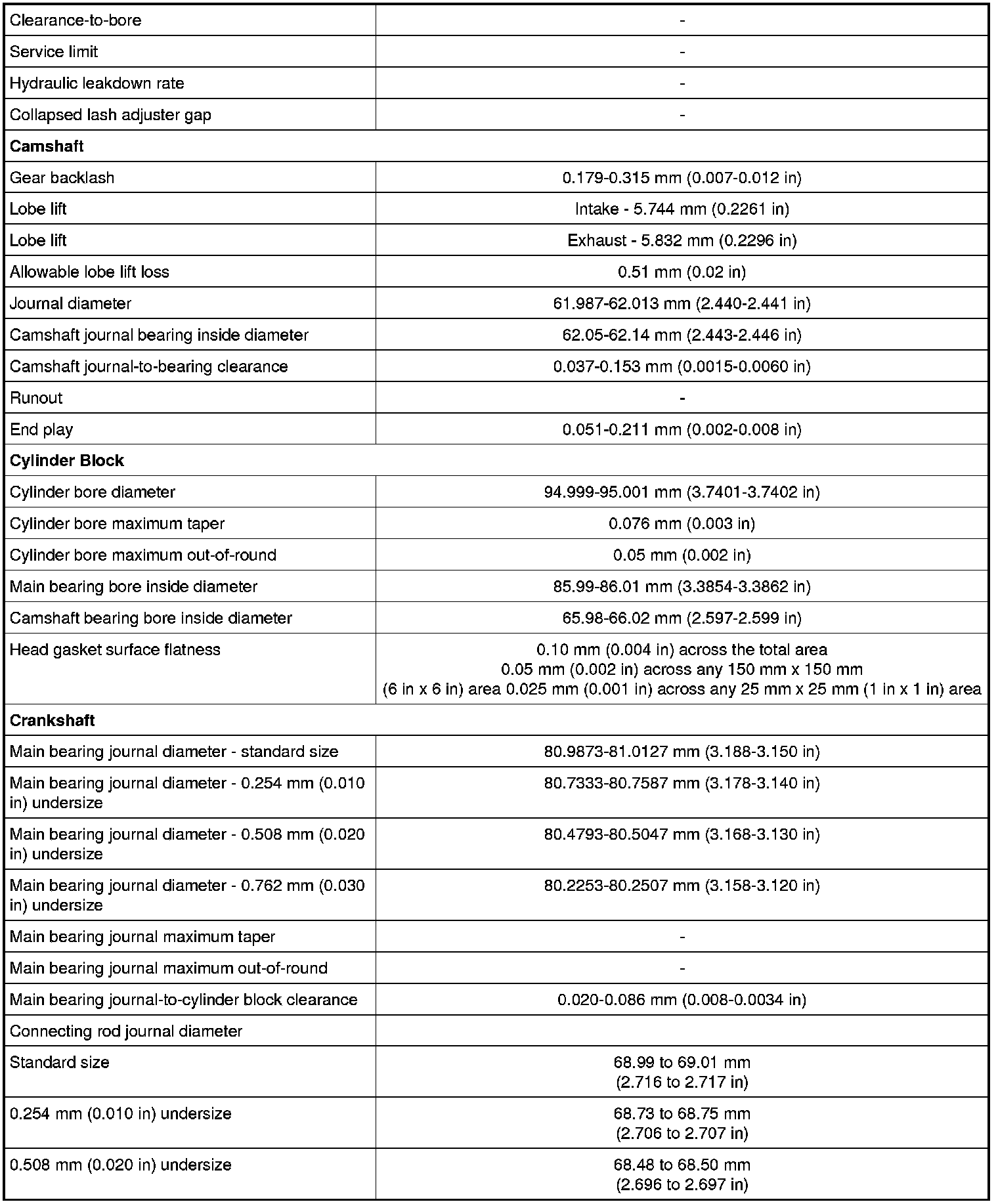

6.0L (Hydraulic Valve Adjuster / Camshaft / Cylinder Block / Crankshaft):





6.0L (Crankshaft / Piston And Connecting Rod):

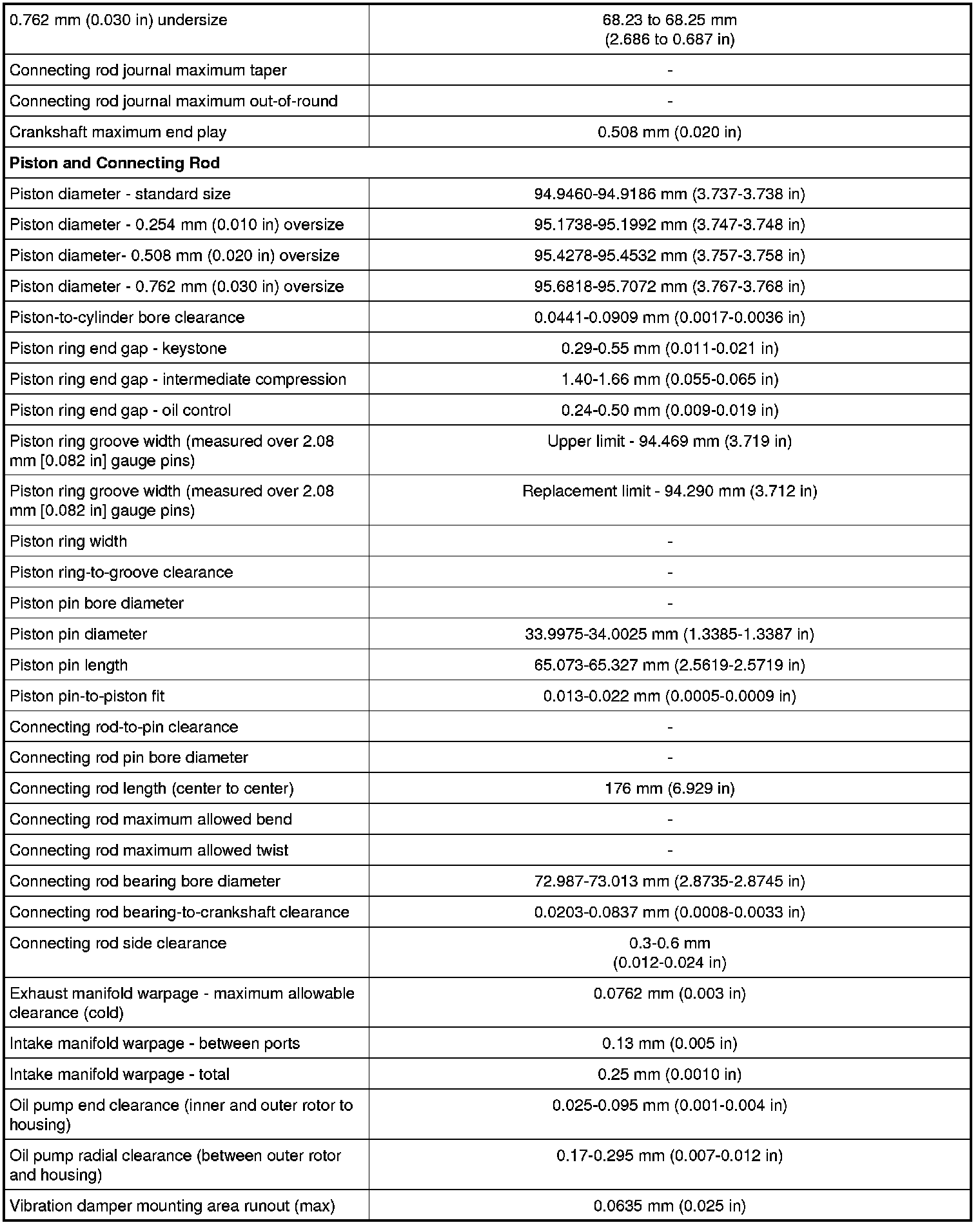

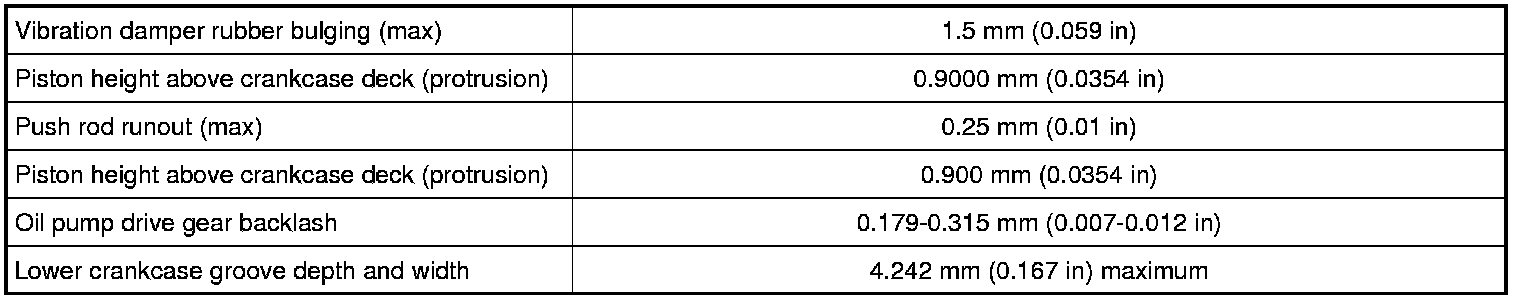

6.0L (Piston And Connecting Rod):






a Refer to the Cylinder Head Distortion procedure.
