Torque Specifications

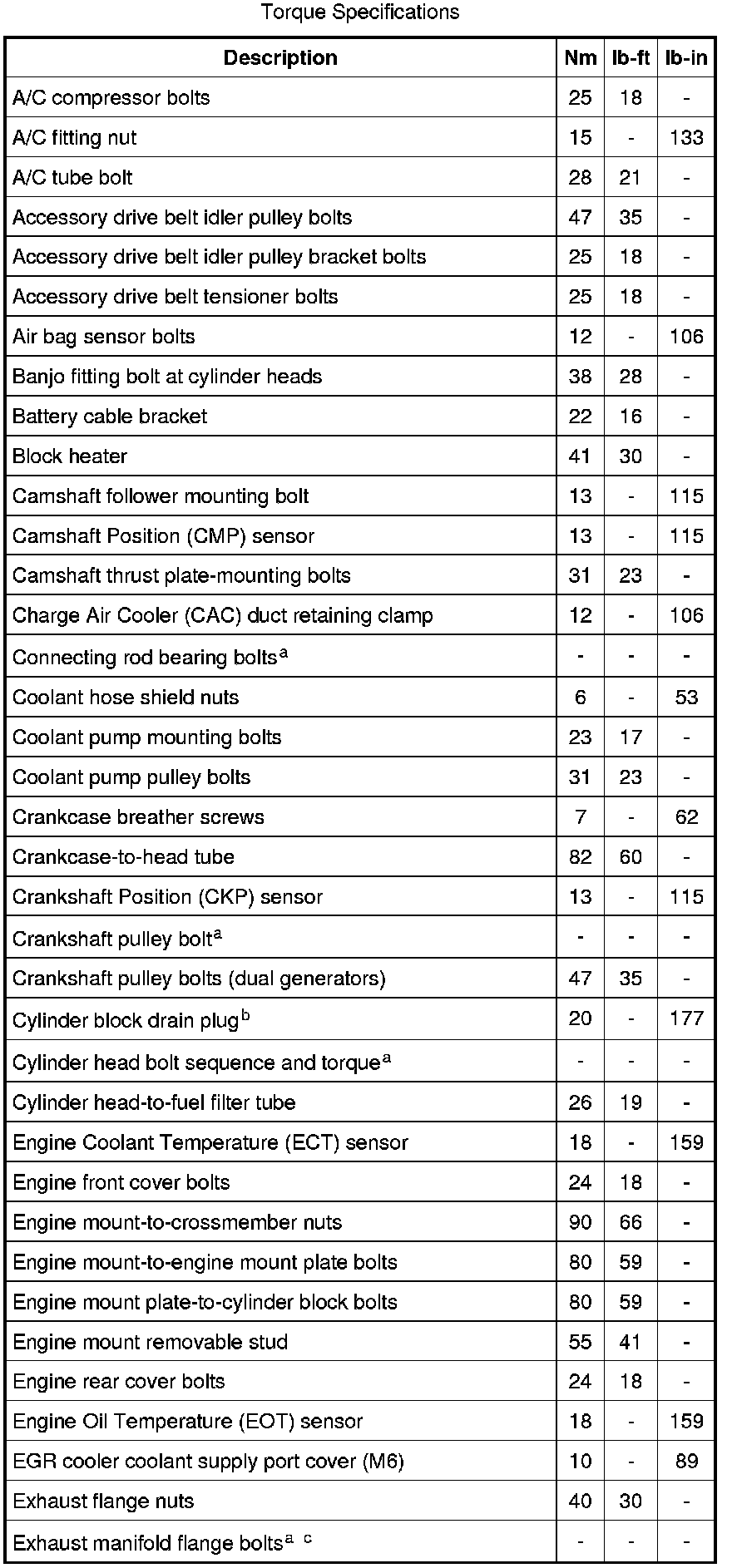

Torque Specifications (Part 1):

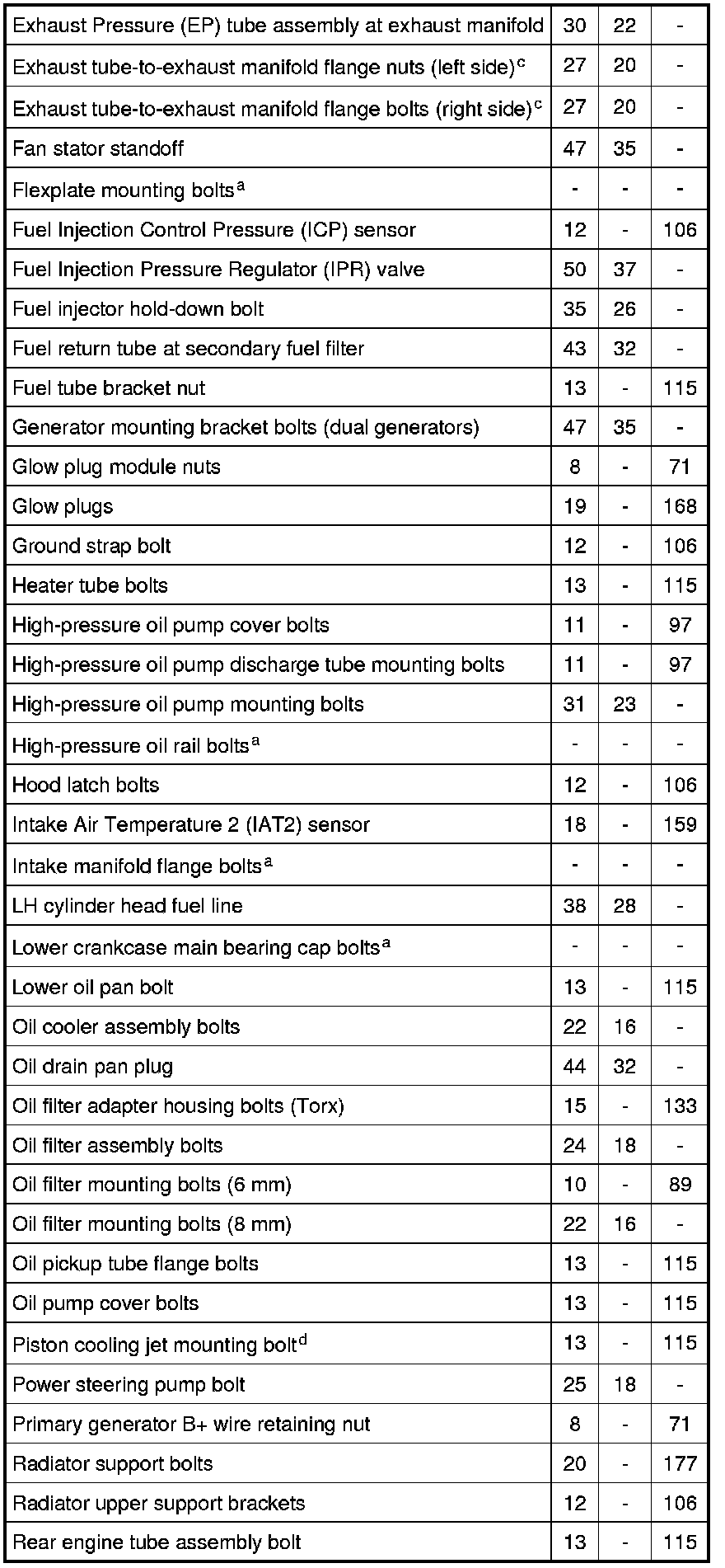

Torque Specifications (Part 2):

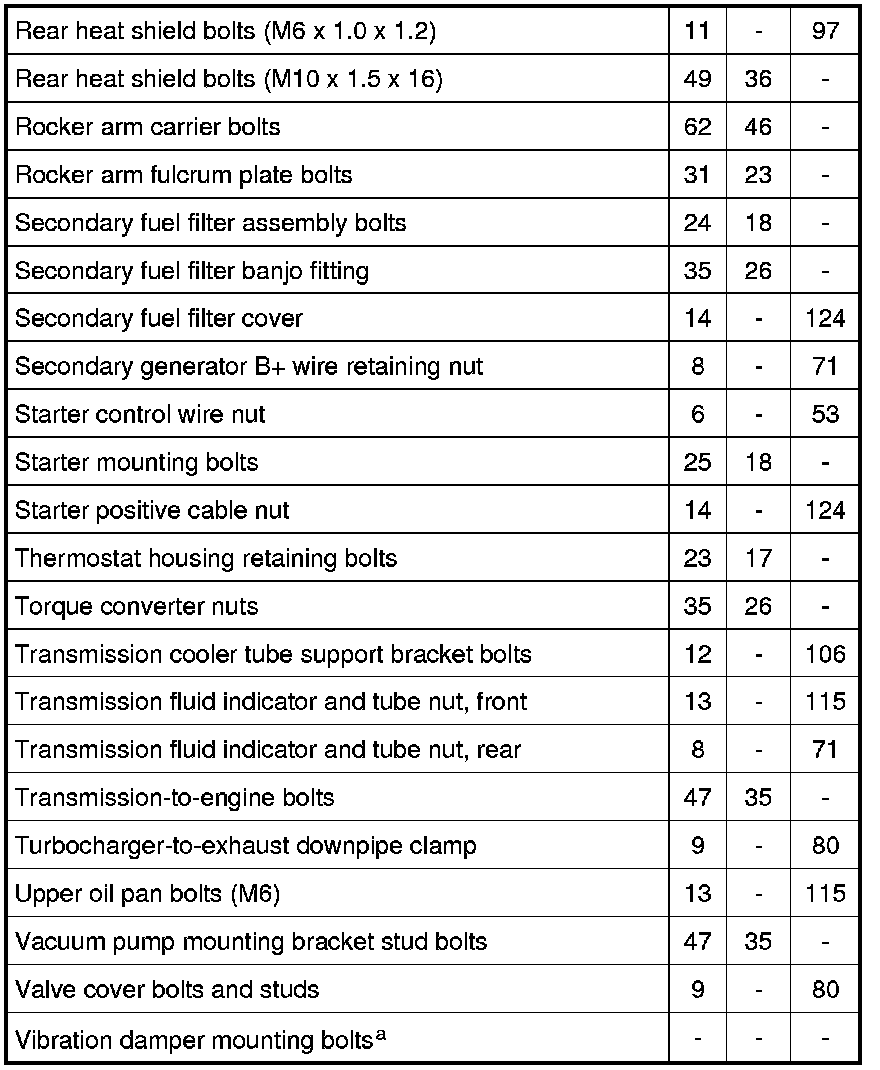

Torque Specifications (Part 3):

a Refer to the procedure.

b Apply clean engine oil to the O-ring seal before installing.

c Apply High Temperature Nickel Anti-Seize Lubricant (XL-2) to the threads prior to assembly.

d Apply Threadlock 262 to bolt threads prior to assembly.

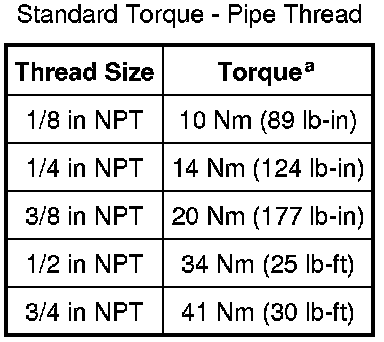

Standard Torque - Pipe Thread:

a Tolerances are ±10% of nominal value.

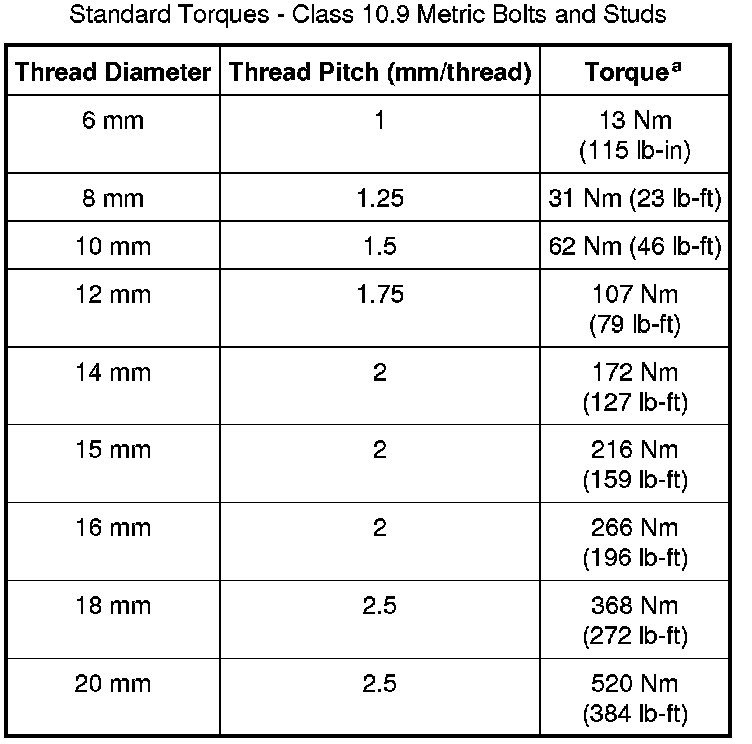

Standard Torques - Class 10.9 Metric Bolts And Studs:

a Tolerances are ±10% of nominal value.

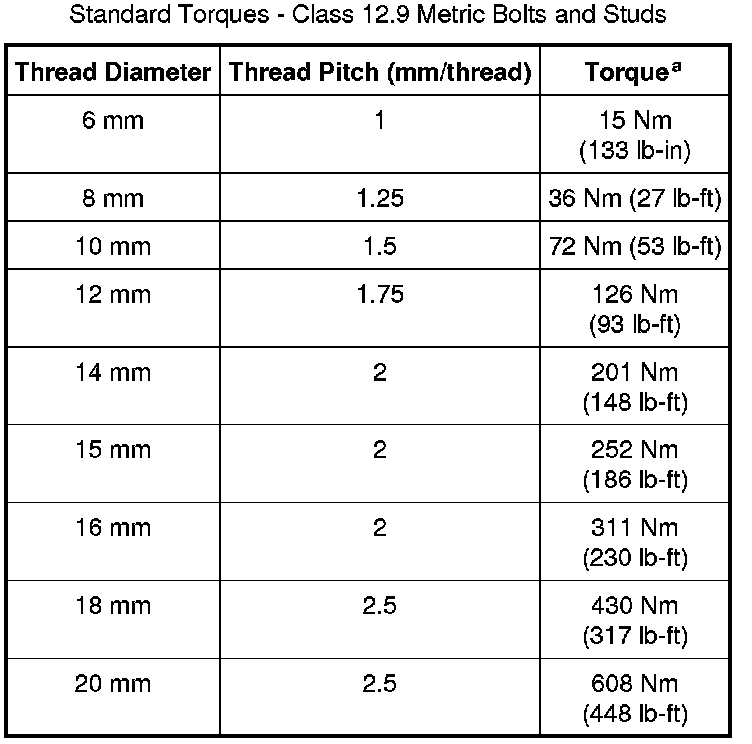

Standard Torques - Class 12.9 Metric Bolts And Studs:

a Tolerances are ±10% of nominal value.
