Parking Assist Control Module: Service and Repair

Parking Aid Module (PAM)









Removal and Installation

1. NOTE: Module configuration is only required if a new Parking Aid Module (PAM) is being installed.

Upload the PAM configuration to the scan tool. For additional information, refer to Programmable Module Installation (PMI) in Information Bus. Programming and Relearning

2. Remove the LH rear quarter trim panel.

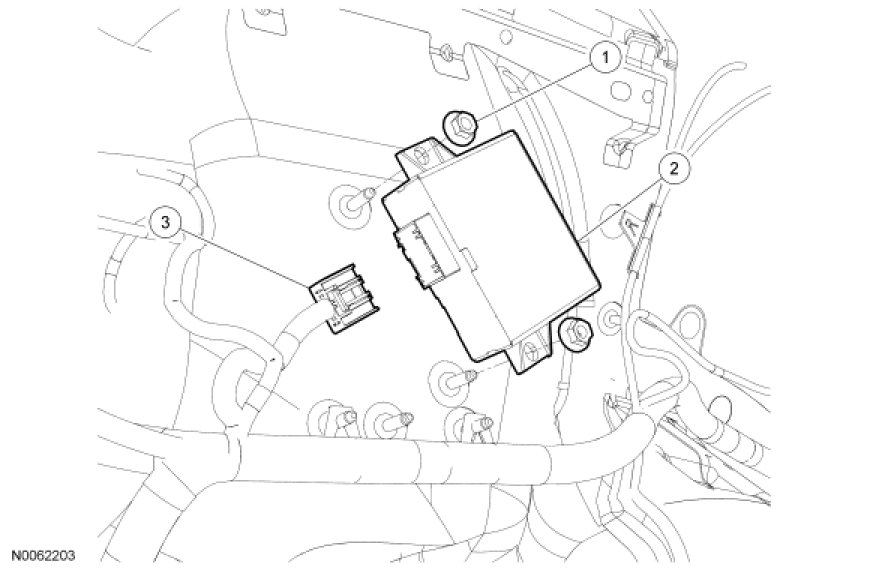

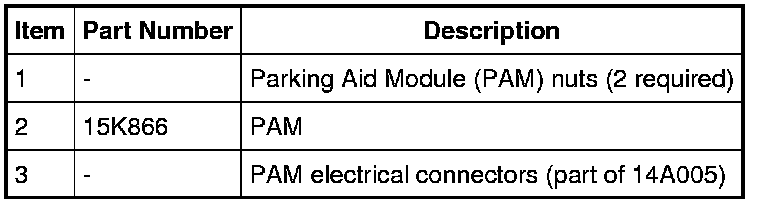

3. Remove the 2 nuts and the PAM.
- Disconnect the PAM electrical connectors.

4. To install, reverse the removal procedure.
- Download the configuration information to the PAM. For additional information, refer to Information Bus to carry out PMI. Programming and Relearning
