Wiper Switch: Service and Repair

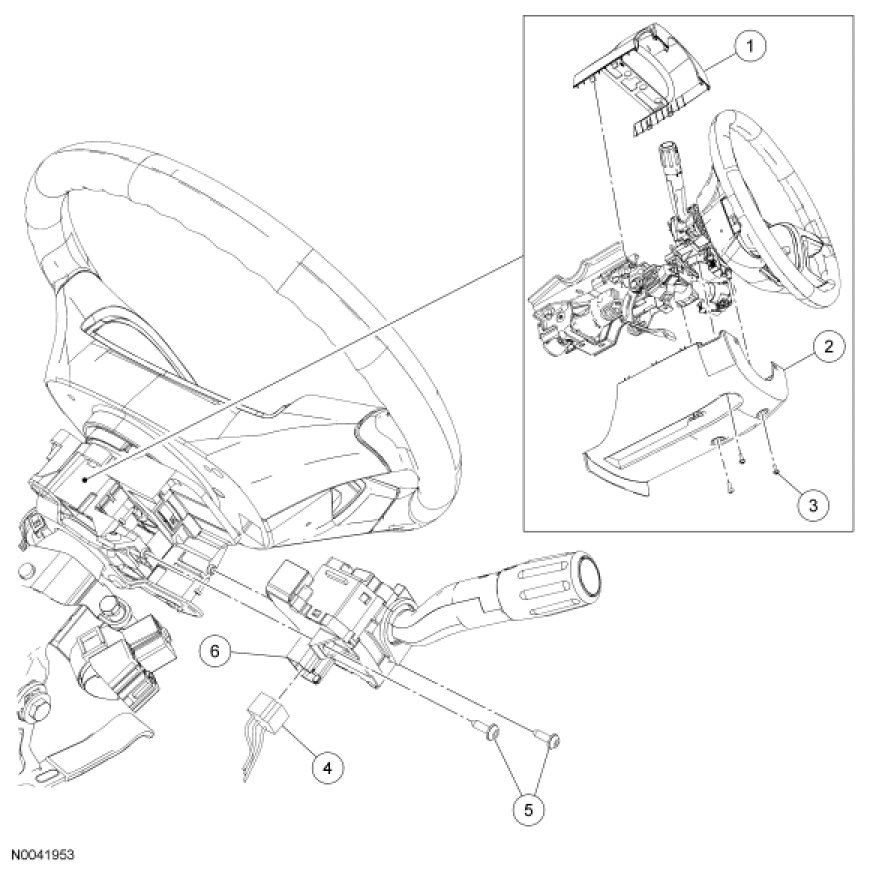

Steering Column Multifunction Switch









Removal and Installation

1. NOTE: Release the upper steering column shroud by pressing inward on the sides of the shroud and lifting upwards.

Remove the upper steering column shroud.

2. Release the tilt lever, remove the 3 lower steering column shroud screws and the shroud.

3. Disconnect the multifunction switch electrical connector.

4. Remove the 2 multifunction switch screws and remove the switch.

5. To install, reverse the removal procedure.
