Memory Set Switch

Memory Set Switch

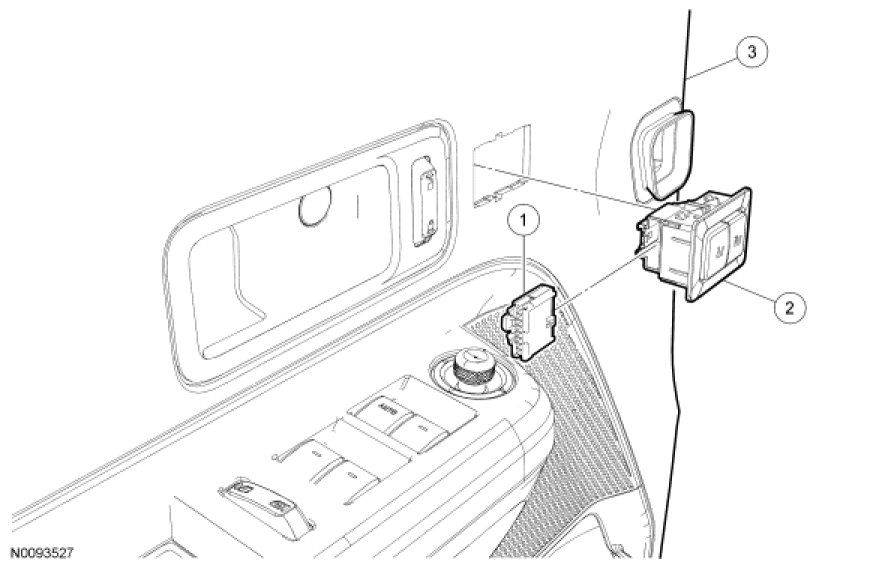

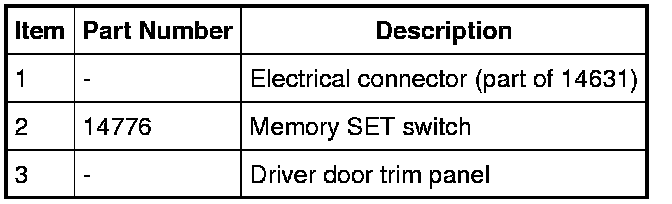

Memory SET Switch, Edge

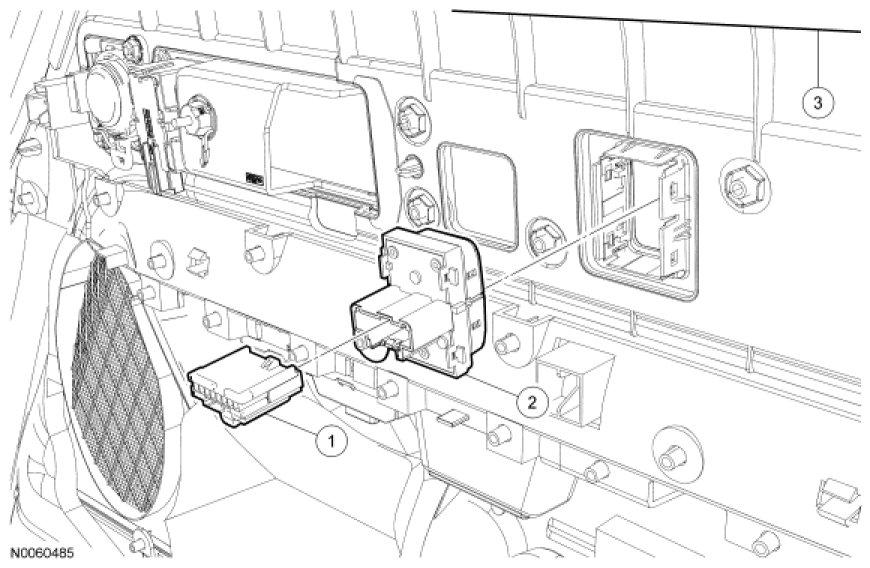

Memory SET Switch, MKX









Removal and Installation

1. Remove the driver door trim panel.

2. Disconnect the electrical connector, release the 4 tabs and remove the memory SET switch.
- For Edge, remove the switch through the front of the door trim panel.

- For MKX, remove the switch through the back of the door trim panel.

3. To install, reverse the removal procedure.
