Exhaust System

Exhaust System - Exploded View

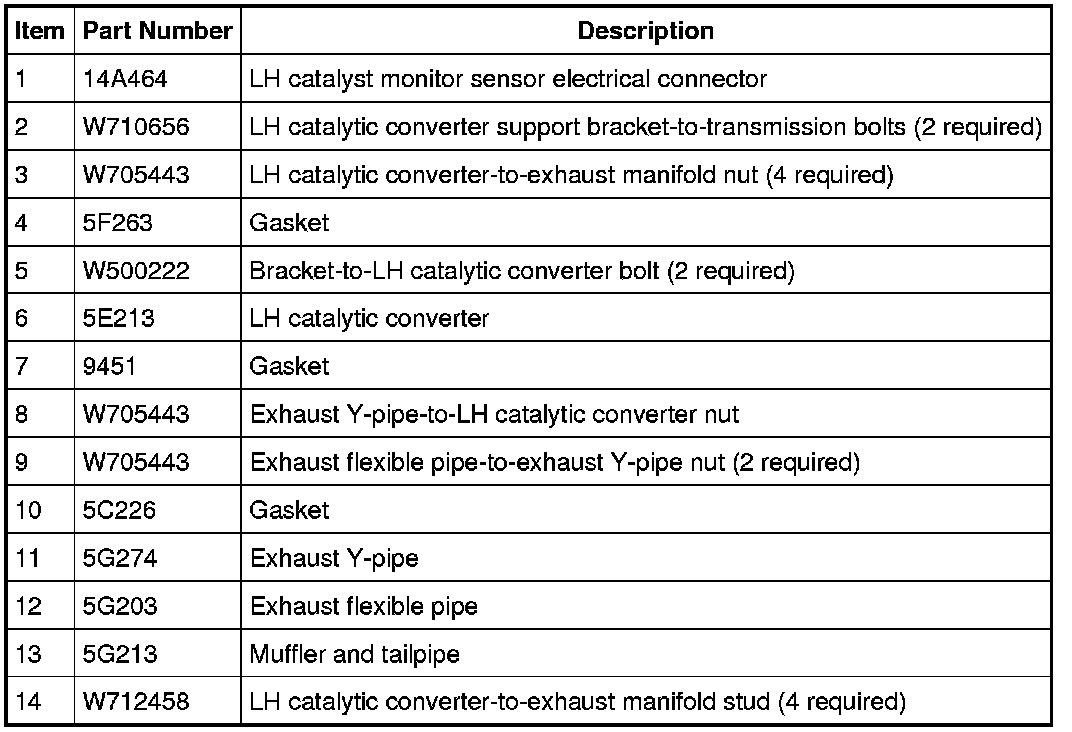

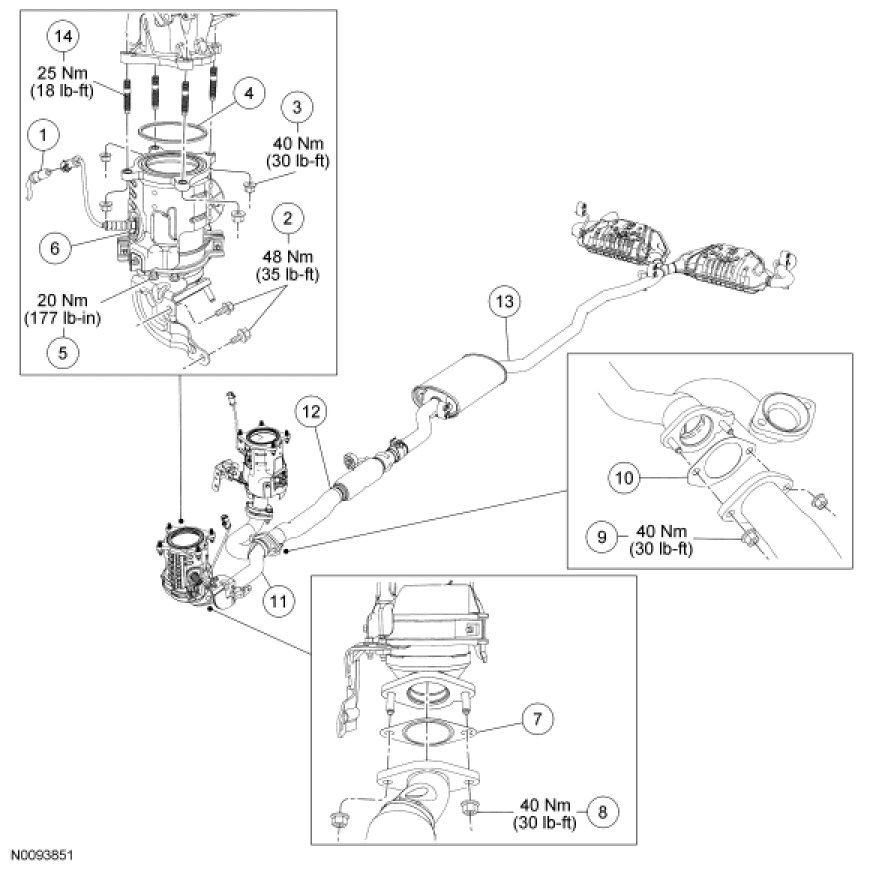

LH Catalytic Converter and Y-Pipe

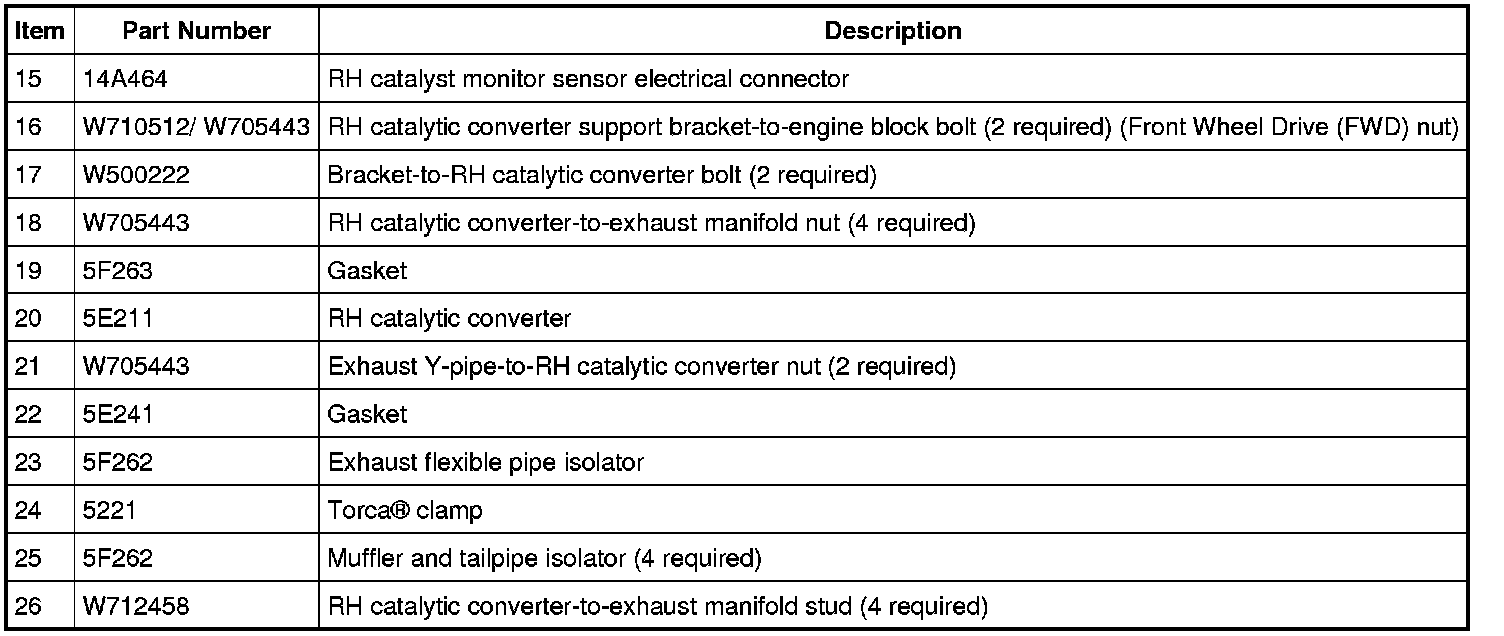

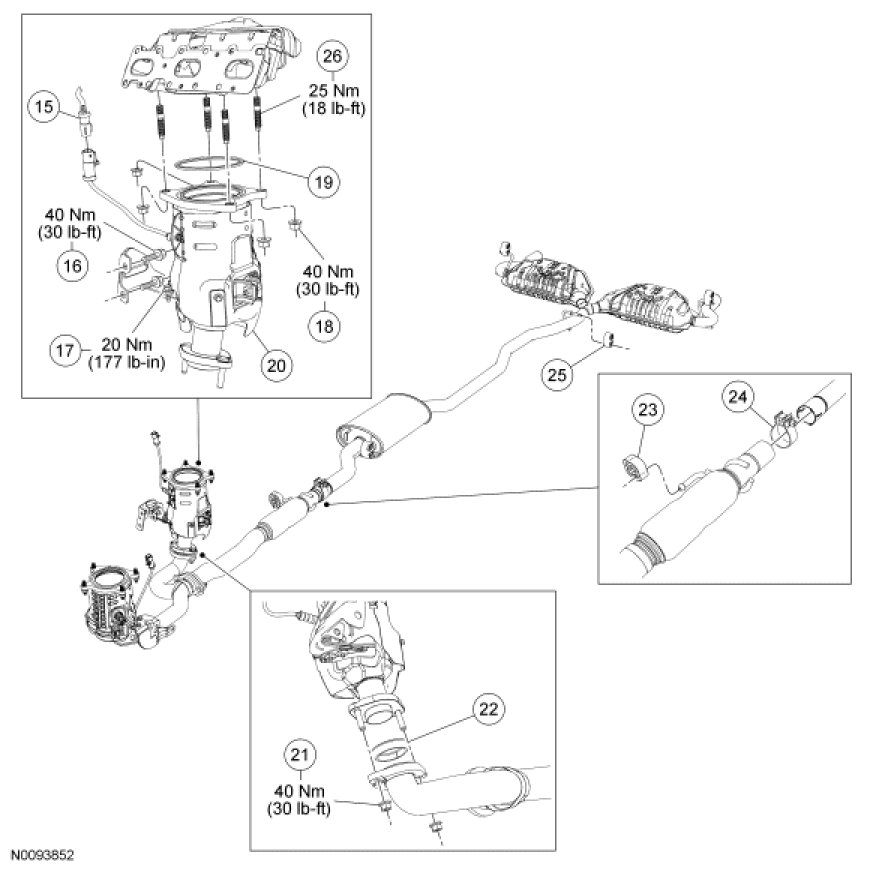

RH Catalytic Converter and Exhaust Flexible Pipe

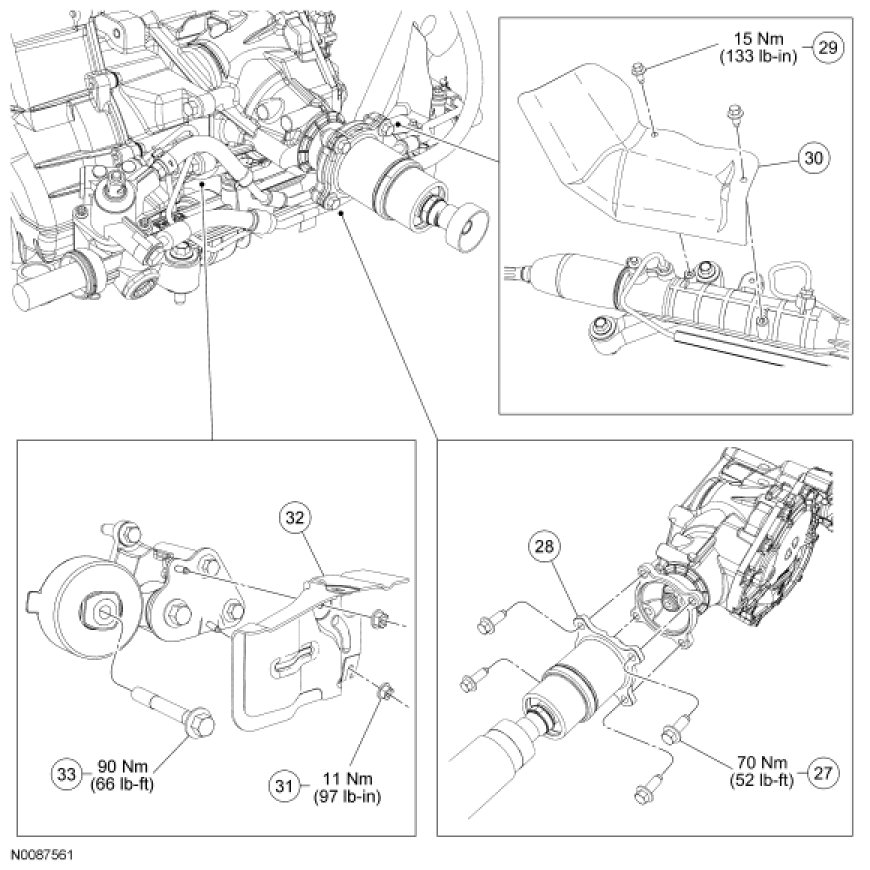

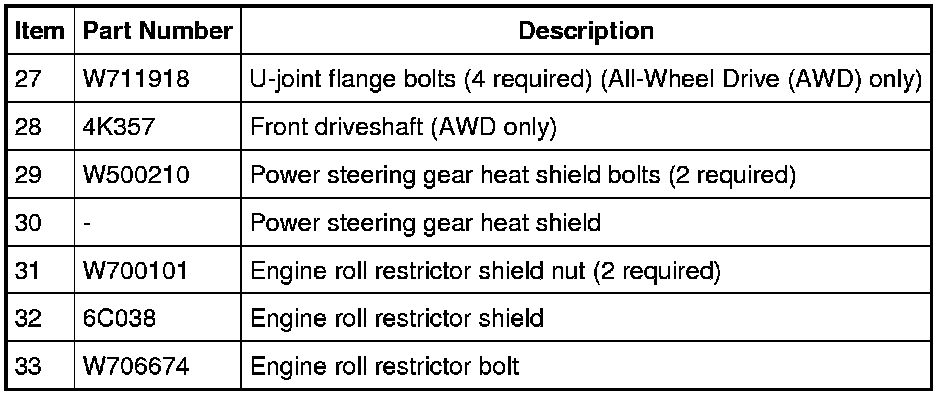

Engine Roll Restrictor, Heat Shield and Driveshaft

1. For additional information, refer to the procedures.
