Fuel Tank and Filler Pipe - Exploded View




Fuel Tank and Filler Pipe - Exploded View

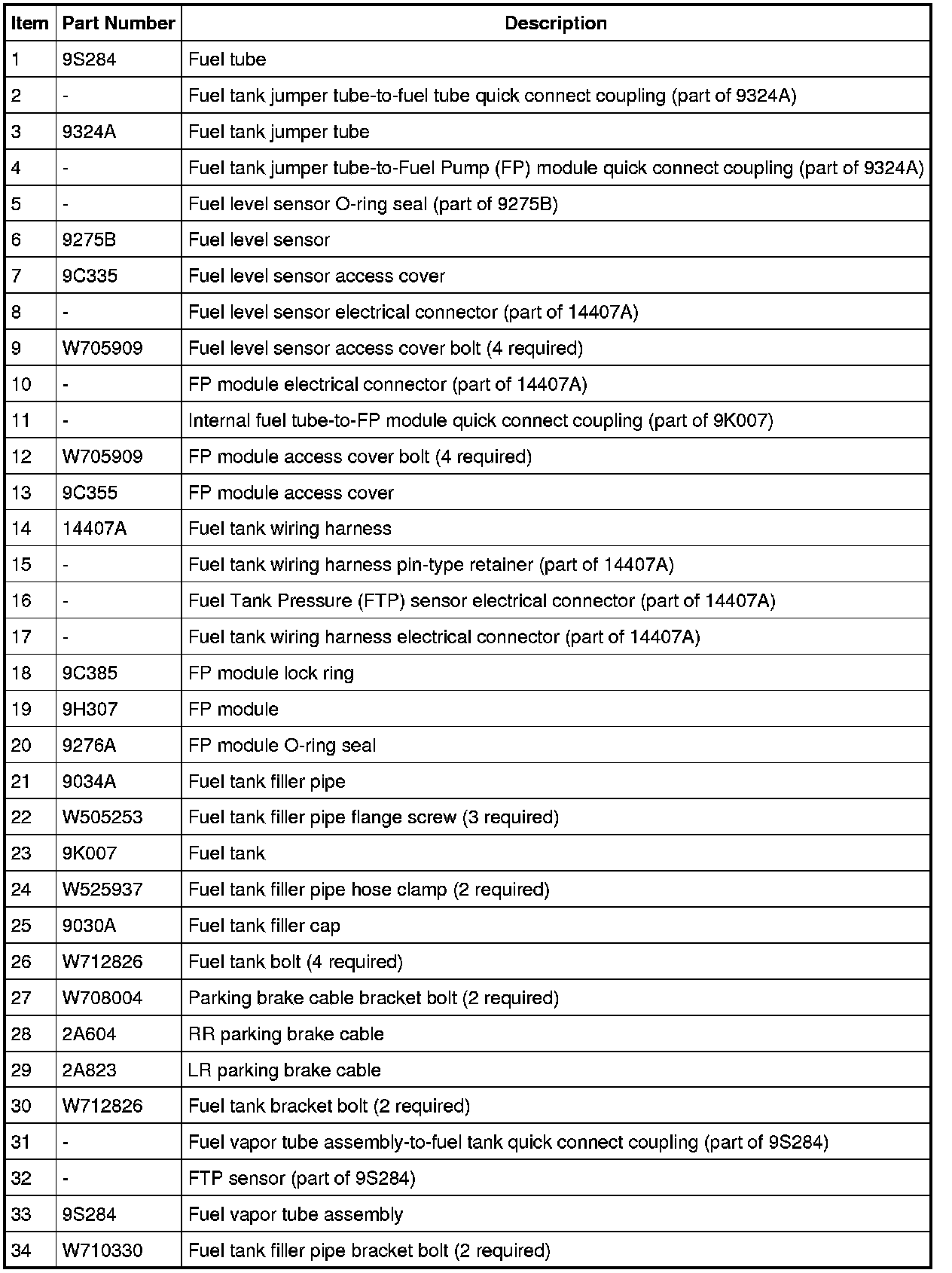

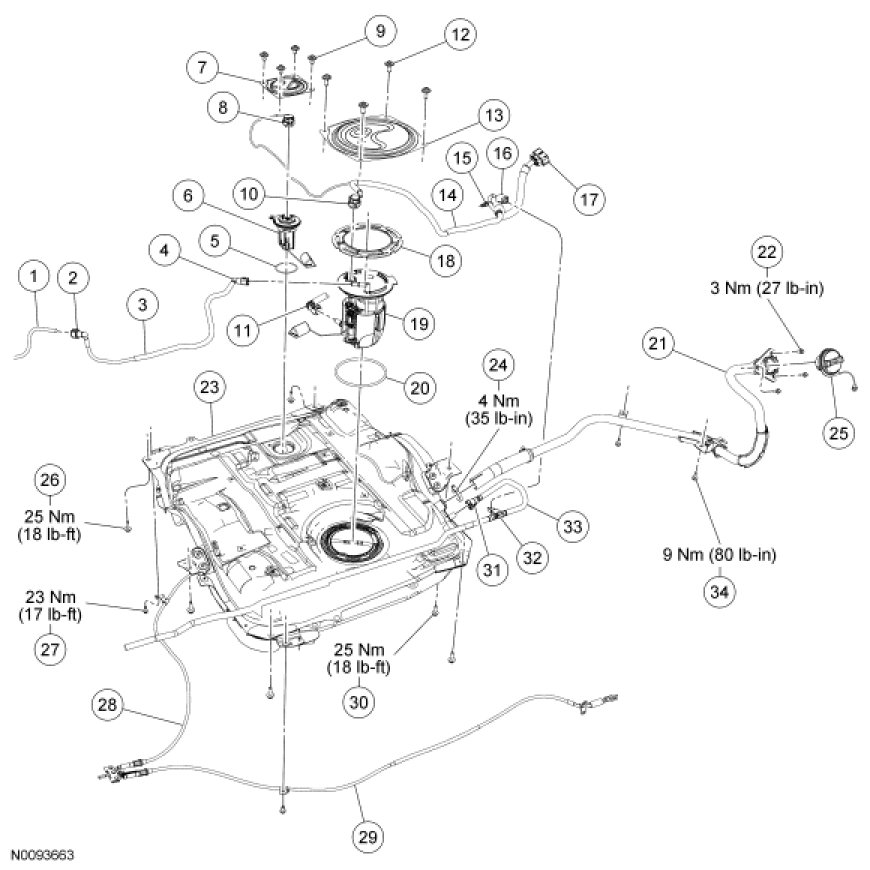

All-Wheel Drive (AWD) Vehicles

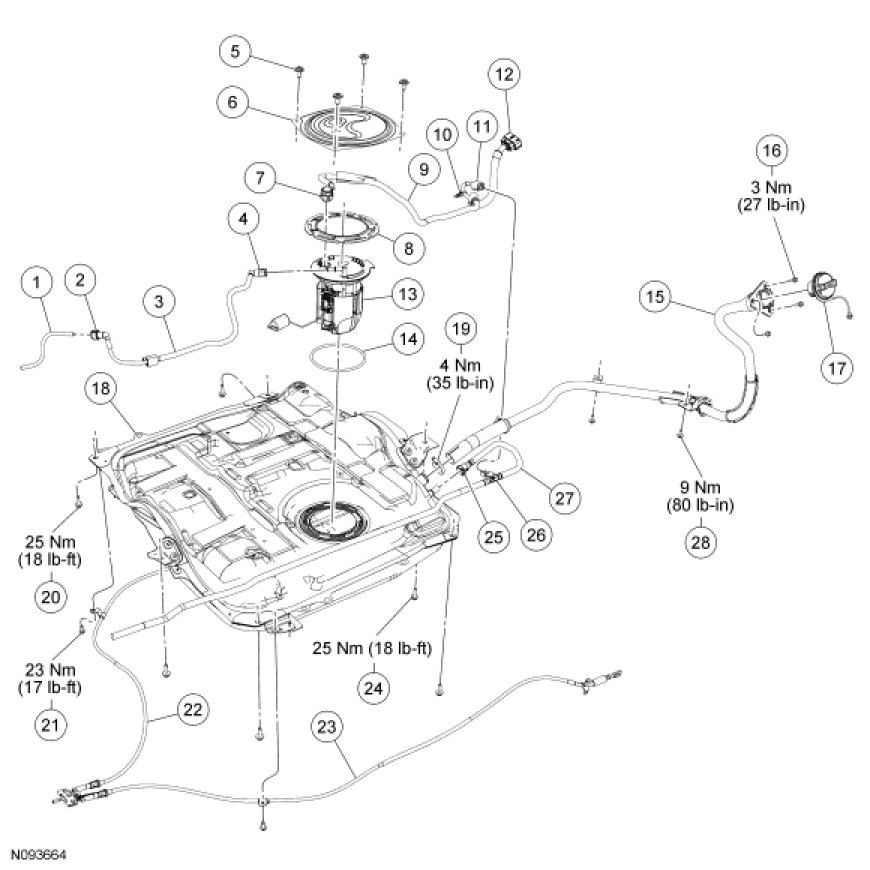

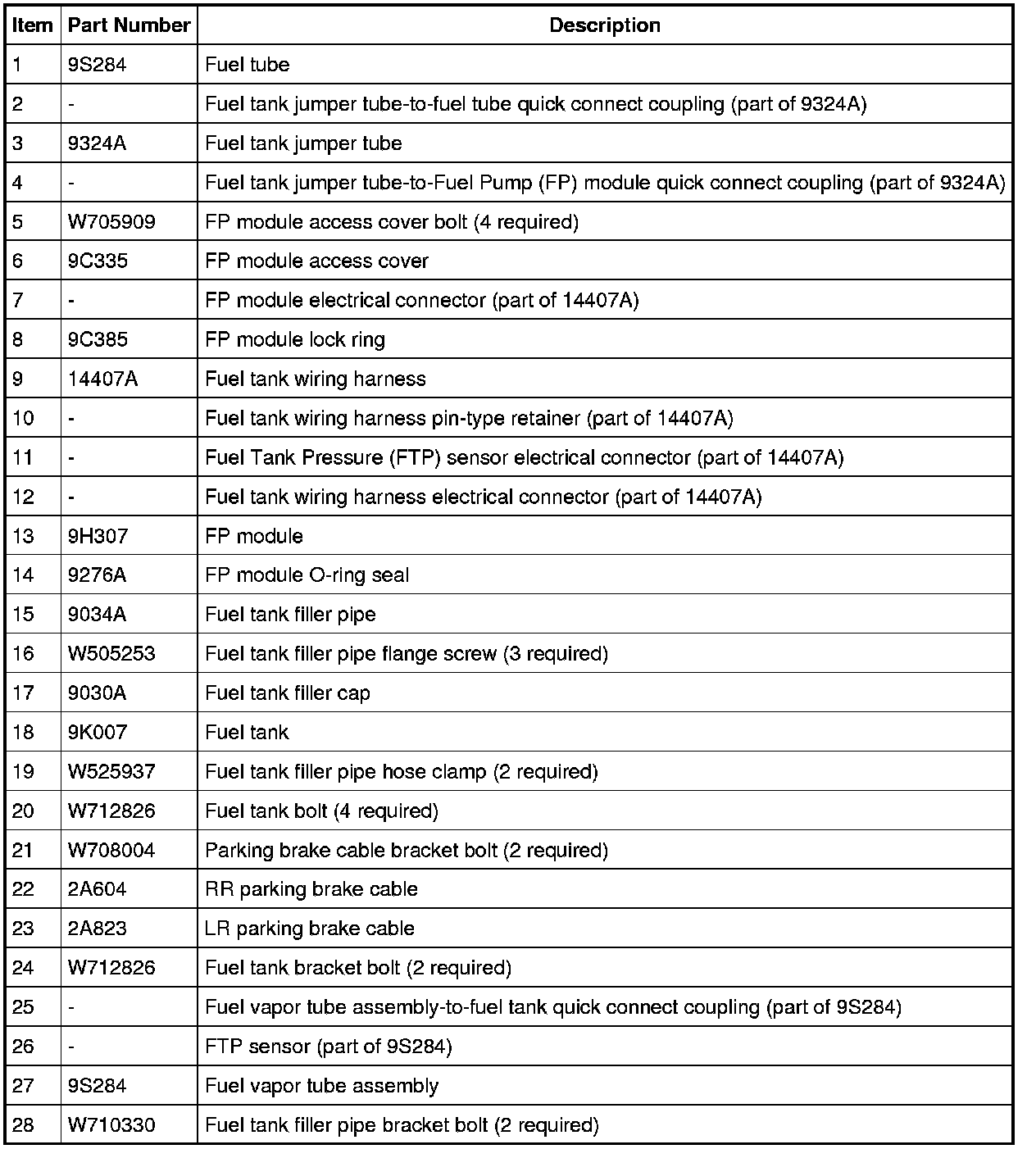

Front Wheel Drive (FWD) Vehicles

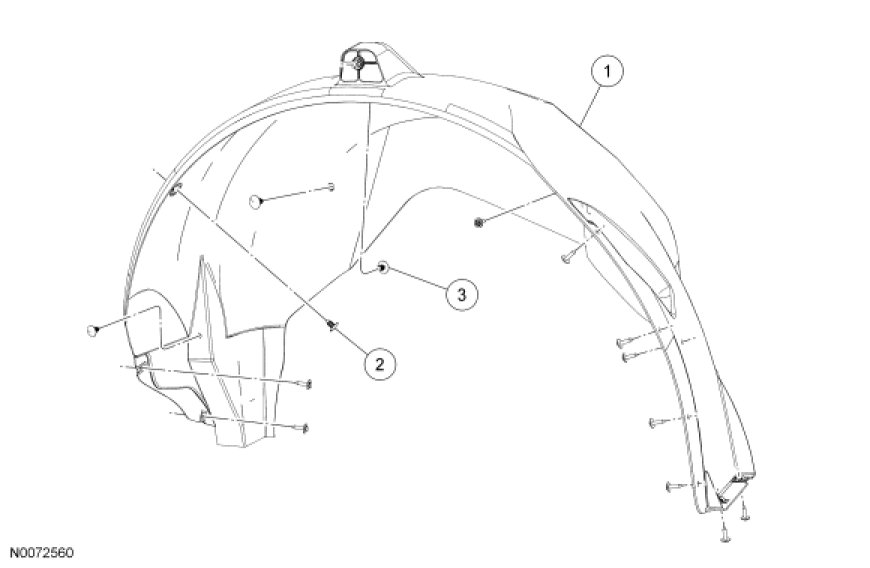

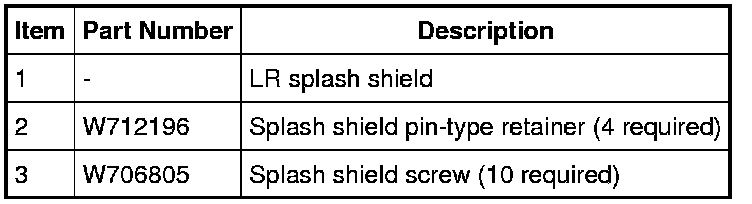

All Vehicles









1. For additional information, refer to the procedures.
