Oil Pan, Engine

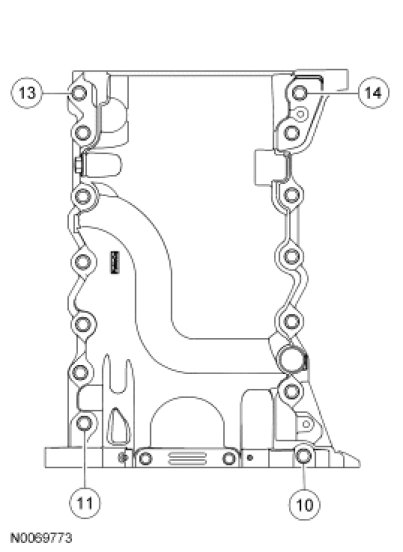

Install the oil pan and bolts 10, 11, 13 and 14.
Tighten the bolts in the sequence shown to 3 Nm (27 lb-in).
Loosen the bolts 180 degrees.

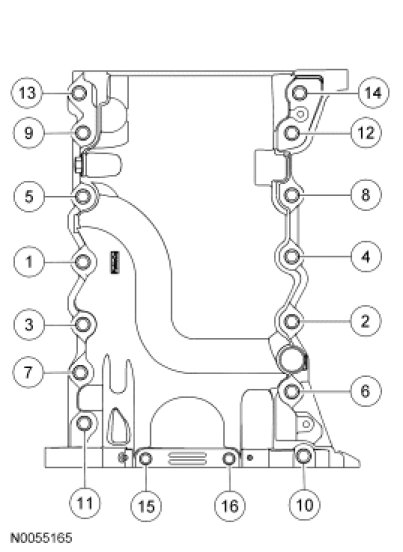

Install the remaining oil pan bolts. Tighten all the oil pan bolts in the sequence shown.
Tighten the large bolts (1-14) to 24 Nm (18 lb-ft).
Tighten the small bolts (15 and 16) to 10 Nm (89 lb-in).
