Anti-Lock Brake System Module Connector (C135)

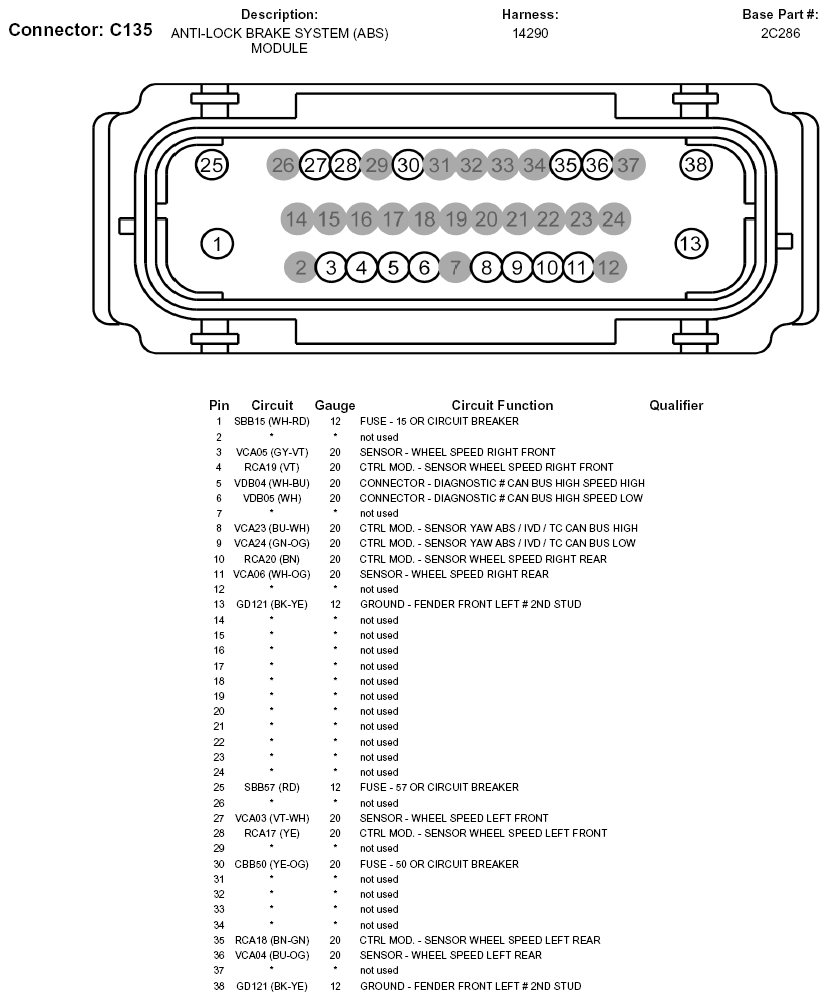

Fig 1: Anti-Lock Brake System Module Connector End View (C135)
G05746896Courtesy of FORD MOTOR CO.
