Crankshaft Position (CKP) Sensor Connector Pin Reference Chart: Notes

WARNING: This page is about a different car, the 2009 Ford RV Cutaway, 2009 Ford Econoline, 2009 Ford E450 Super Duty, and 2009 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

This pinpoint test is intended to diagnose the following:

CKP sensor (6C315)
harness circuits: CKP (+), CKP (-), CKP out (CKPO) and CKP shield
powertrain control module (PCM)

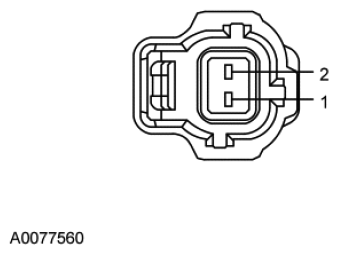

Fig 1: Identifying Crankshaft Position (CKP) Sensor Connector

Courtesy of FORD MOTOR CO.

CRANKSHAFT POSITION (CKP) SENSOR CONNECTOR PIN REFERENCE CHART

Pin	Circuit
2	CKP- (Crankshaft Position Sensor Negative)
1	CKP+ (Crankshaft Position Sensor Positive)

Fig 2: Identifying Fuel Injector Control Module-C (FICM-C) Connector

Courtesy of FORD MOTOR CO.
