Mass Air Flow/Intake Air Temperature (MAF/IAT) Sensor Connector Pin Reference Chart: Notes
WARNING: This page is about a different car, the 2009 Ford RV Cutaway, 2009 Ford Econoline, 2009 Ford E450 Super Duty, and 2009 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
This pinpoint test is intended to diagnose the following:
- Harness circuits: IAT, and SIGRTN
- IAT sensor
- Powertrain control module (PCM) (12A650)

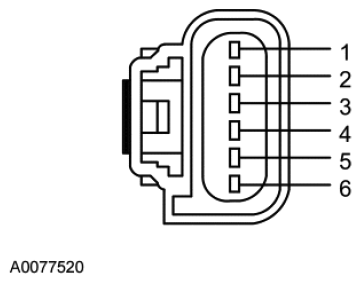

MASS AIR FLOW/INTAKE AIR TEMPERATURE (MAF/IAT) SENSOR CONNECTOR PIN REFERENCE CHART
| Pin | Circuit |
|---|---|
| 2 | SIGRTN (Signal Return) |
| 1 | IAT (Intake Air Temperature) |
