Parking Brake Applied (PBA) Switch Connector Pin Reference Chart: Notes
WARNING: This page is about a different car, the 2009 Ford RV Cutaway, 2009 Ford Econoline, 2009 Ford E450 Super Duty, and 2009 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
This pinpoint test is intended to diagnose the following:
- PBA switch
- parking brake signal circuit short to ground
- parking brake signal circuit open
- powertrain control module (PCM) (12A650)

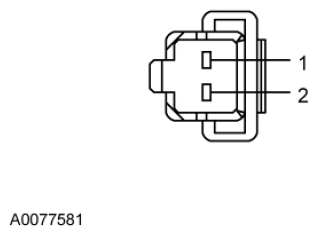

PARKING BRAKE APPLIED (PBA) SWITCH CONNECTOR PIN REFERENCE CHART
| Pin | Circuit |
|---|---|
| 2 | GND (Ground) |
| 1 | PBA (Parking Brake Applied) |
