Receiver Drier: Material
WARNING: This page is about a different car, the 2009 Ford Flex. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATION
| Item | Specification |
|---|---|
| PAG Refrigerant Compressor Oil (R-134a Systems) YN-12-D |
WSH-M1C231-B |

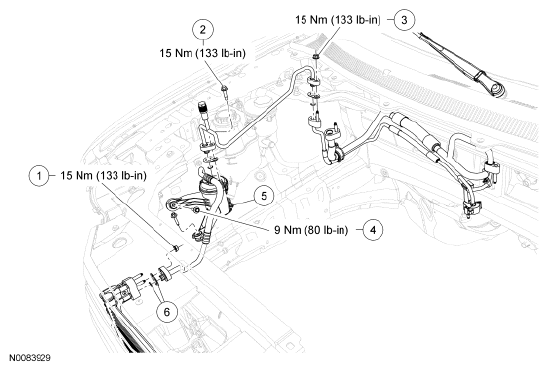

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | W520413 | Condenser outlet fitting nut |
| 2 | W712977 | Receiver/drier outlet fitting bolt |
| 3 | W520413 | Evaporator inlet line fitting nut |
| 4 | W703845 | Receiver/drier bolt (2 required) |
| 5 | 19C836 | Receiver/drier |
| 6 | 19B596 | O-ring seal and gasket seal kit (2 required) |
