Front Controls Interface Module (FCIM): Notes
WARNING: This page is about a different car, the 2009 Ford Flex. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

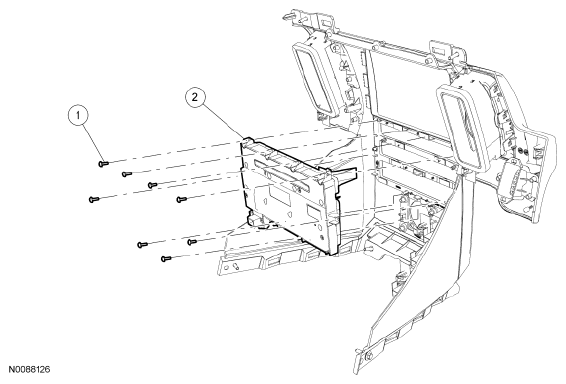

Vehicle with navigation shown, others similar.
Courtesy of FORD MOTOR CO. ITEM DESCRIPTION CHART
| Item |
Part Number |
Description |
| 1 |
W713809-S |
Front Controls Interface Module (FCIM) screws (17 required for vehicles without navigation, 8 required for vehicles with navigation) |
| 2 |
18842 |
FCIM |
