Side Air Bag Module: Notes
WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

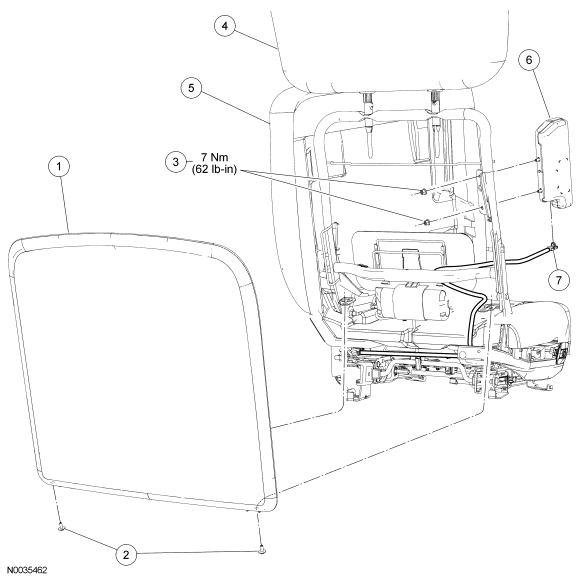

RH shown in illustration, LH similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 60770 | Seat back trim panel (Police only) |
| 2 | - | Seat back trim panel screws (2 required) (Police only) |
| 3 | N620480 | Side air bag module nuts |
| 4 | 64416 | Seat backrest trim cover |
| 5 | 64810 | Seat backrest foam pad |
| 6 | 611D10 | Side air bag module |
| 7 | - | Side air bag module electrical connector (part of 14716) |
