Occupant Classification Sensor: Notes
WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) | software with appropriate hardware, or equivalent scan tool |

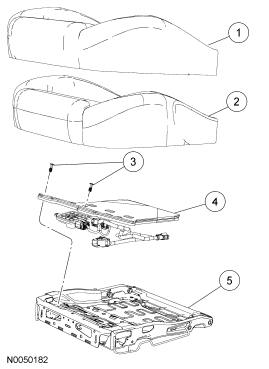

| Item | Part Number | Description |
|---|---|---|
| 1 | 62900 | Seat cushion trim cover |
| 2 | - | Seat cushion foam pad |
| 3 | - | Pin-type retainers |
| 4 | - | Occupant Classification Sensor (OCS) system (bladder, hose with pressure sensor, Occupant Classification System Module (OCSM) and wiring harness) |
| 5 | 63100 | Seat cushion frame assembly |

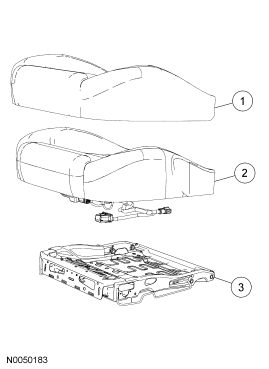

| Item | Part Number | Description |
|---|---|---|
| 1 | 62900 | Seat cushion trim cover |
| 2 | 632A22 | OCS system service kit (seat cushion foam pad, bladder, hose with pressure sensor, OCSM and wiring harness) |
| 3 | 63100 | Seat cushion frame assembly |
