Transaxle Rear Support Insulator: Notes
WARNING: This page is about a different car, the 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

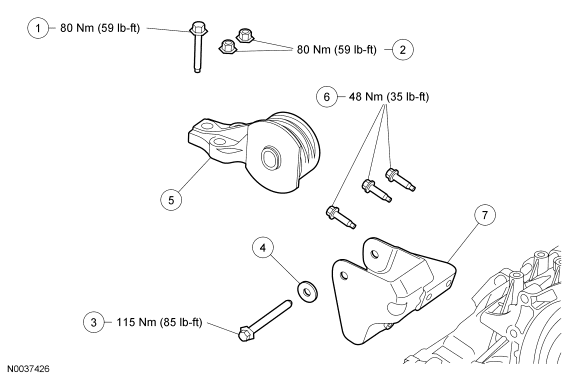

| Item | Part Number | Description |
|---|---|---|
| 1 | W500743-S439 | Transaxle rear support insulator bolt |
| 2 | W807144-S440 | Transaxle rear support insulator nuts (2 required) |
| 3 | W710173-S439 | Transaxle rear support insulator through-bolt |
| 4 | - | Washer (part of 6E037) |
| 5 | 6E037 | Transaxle rear support insulator |
| 6 | W500234-S439 | Transaxle rear support insulator bracket bolts (3 required) |
| 7 | 7G034 | Transaxle rear support insulator bracket |
