Transaxle Support Insulator - LH: Notes
WARNING: This page is about a different car, the 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| 3-Bar Engine Support Kit | 303-F072 or equivalent |

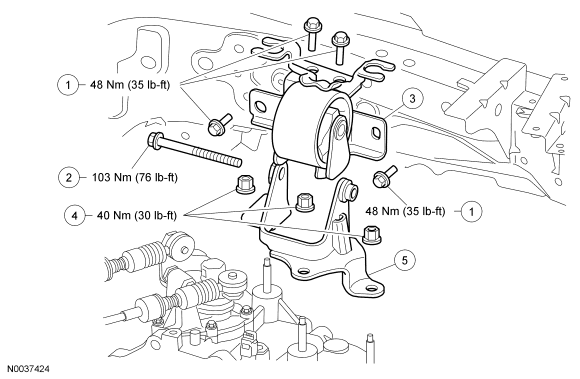

| Item | Part Number | Description |
|---|---|---|
| 1 | W500233-S439 | LH transaxle support insulator bolts (4 required) |
| 2 | W710173-S439 | LH transaxle support insulator through-bolt |
| 3 | 6B049 | LH transaxle support insulator |
| 4 | W710213-S440 | LH transaxle support insulator bracket nuts (3 required) |
| 5 | 6M007 | LH transaxle support insulator bracket |
