Vehicle Speed Sensor (VSS): Notes

WARNING: This page is about a different car, the 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

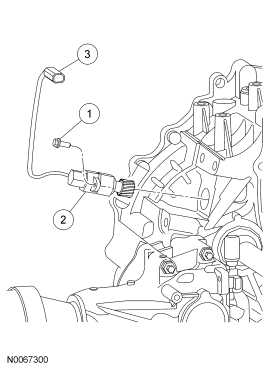

Fig 1: Exploded View Of Vehicle Speed Sensor (VSS)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W500013-S439	Vehicle speed sensor (VSS) bolt
2	17271	VSS
3	-	VSS electrical connector
