Removal And Installation: Radiator: Notes
WARNING: This page is about a different car, the 2008 Mercury Sable, 2008 Ford Taurus X, and 2008 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
8B274 |
Upper radiator hose |
| 2 |
8W005 |
Lower degas bottle hose |
| 3 |
8B273 |
Lower radiator hose |
| 4 |
8A194 |
Upper radiator support bracket (2 required) |

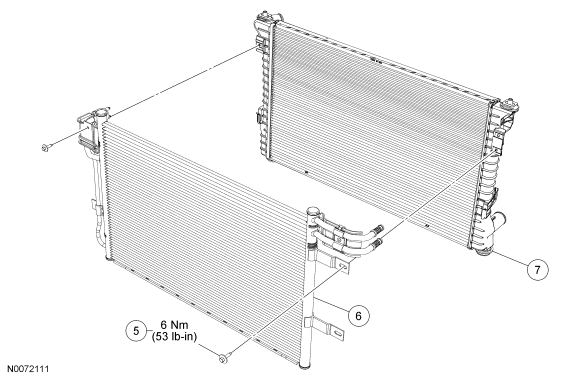

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 5 |
W503924 |
A/C condenser bolt (2 required) |
| 6 |
19712 |
A/C condenser |
| 7 |
8005 |
Radiator |
